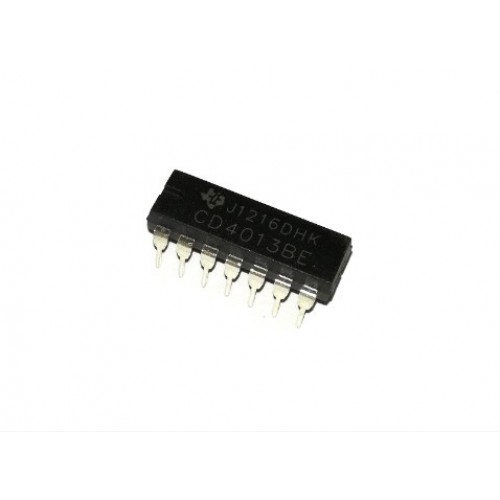

4013 D Flip Flop

The CD4013 dual D flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement mode transistors. Each flip-flop
has independent data, set, reset, and clock inputs and ``Q'' and ``Q'' outputs. These devices can be used for shift register applications, and by connecting ``Q'' output to the data input, for counter and toggle applications. The logic level present at the ``D'' input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line respectively.

Features

• Wide supply voltage range 3.0V to 15V

•  High noise immunity 0.45 VDD (typ.)

•  Low power TTL fan out of 2 driving 74L compatibility or 1 driving 74LS

Applications

•  Automotive

• Alarm system

•  Data terminals

• Industrial electronics

•  Instrumentation

• Remote metering

• Medical electronics

• Computers

Specification:

• Maximum DC Supply Voltage (VDD): -0.5 VDC to+18 VDC
• Recommended DC Supply Voltage (VDD):+3 VDC to +15 VDC
• Input Voltage (VIN):-0.5 VDC to VDD +0.5 VDC
• Storage Temp. Range (TS) -65°C to+150°C
