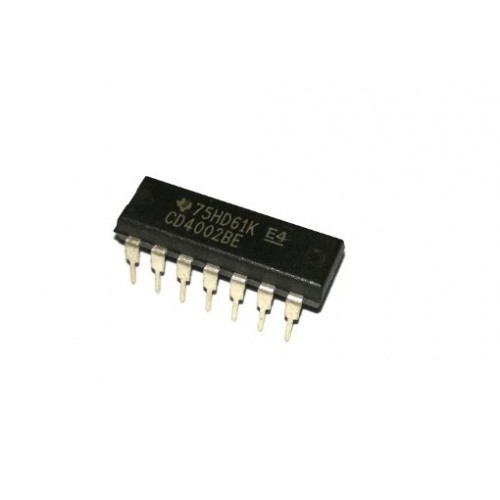

4002 NOR Gate

These dual 4-input NOR gates are monolithic complementary MOS (CMOS) integrated circuits. The N- and P-channel enhancement mode transistors provide a symmetrical cir-cuit with output swings essentially equal to the supply volt-age. This results in high noise immunity over a wide supply voltage range. No DC power other than that caused by leakage current is consumed during static conditions. All inputs are protected against static discharge and latching conditions. CityTechBD

Applications

• Automotive
• Alarm system

• Data terminals
• Industrial controls

• Instrumentation
• Remote metering

• Medical Electronics
• Computers
