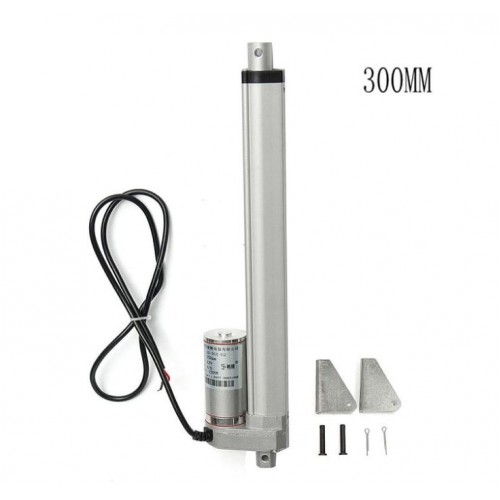

12V DC Long-Stroke Linear Actuator 300mm
- Description
- Questions (0)
- Reviews (0)
Description
12V DC Long-Stroke Linear Actuator 300mm in Bangladesh
This Miniature Linear Actuator Stroke Length 300MM, 15mm/S, 500N, 12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo, and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the pushrod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control, or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, pushrod, sliding seat, shell, micro-motion control switch, etc. CityTechBD
Note:
1. The actual product may vary in terms of color and markings.
2. The following conditions can cause serious damage to the product.
1. Direct connect with AC power
2. Use in the above standard voltage environment
3. Push/Pull exceed the maximum value of the product show
4. The stroke did not finish, still with power, forced to cease.
3. The following conditions may shorten the product’s life.
1. High-frequency operation
2. High temperature CityTechBD
Linear Actuator Parts:
The following figure shows various parts of the Linear Actuator. Also, please refer to the schematic provided in the attachments for the dimensions of the actuator. CityTechBD
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive: Voltage 12VDC
- Self Locking Force: 500N CityTechBD
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras, and more. CityTechBD
| General Specification | |
| Stroke Length | 300mm (apprx. 12inches) |
| Permanent magnet DC motor drive | Voltage 12VDC |
| Working temperature | -20ºC to +63ºC |
| Motor Diameter(mm) | 36 |
| Mounting hole diameter (both ends) | 1/4” (6.4mm) |
| Protection Level | IP55 |
| Noise level | 45dB |
| Speed at no load | 15 mm/sec |
| Maximum static load | 110 lbs. (500 Newtons) |
| Maximum current draw | ≤2A |
| Length (mm) | 420 |
| Width (mm) | 100 |
| Height (mm) | 50 |
| Weight (gm) | 1150 |
| Shipment Weight | 0.3 kg |
| Shipment Dimensions | 42 × 10 × 5 cm |
Please allow 5% measuring deviation due to manual measurement. CityTechBD
Package Includes:
1 x Linear Actuator Stroke Length 300MM, 15mm/S, 500N, 12V CityTechBD
What is the price of 12V DC Long-Stroke Linear Actuator 300mm?
The latest price of 12V DC Long-Stroke Linear Actuator 300mm in Bangladesh is 6,750৳ You can buy the 12V DC Long-Stroke Linear Actuator 300mm at best price from our Website or visit any of our showrooms.
