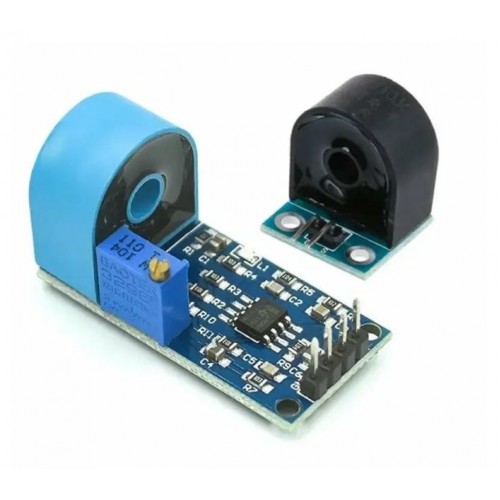

ZMCT103C Current Transformer 5A AC Current Sensor Module

Description

ZMCT103C Current Transformer 5A AC Current Sensor Module  in Bangladesh.

The ZMCT103C is a precision microcurrent current transformer sensor module, which can measure up to 5 Amps of AC current. It comes with 4 output pins and is available in epoxy encapsulation. It detects and generates the analog output signals proportional to the AC current flowing via the wire. CityTech BD

    Note: Product Images may differ from the actual product.

    Specification:

    • Model: ZMCT103C
    • Current Ratio: 5 A-5 mA
    • Maximum Primary Current: 20A @50/60Hz
    • Rated Primary Current: 5A @50/60Hz
    • Input Current Range: 0-10 A @50 ohms
    • Rated Output Current: 5 mA @5 A of input current
    • Turns Ratio (Np:Ns): 1000:1
    • Isolation Voltage: 4500 V
    • DC Resistance of Winding: 155 Ω @20°C
    • Accuracy Class: 0.2
    • Linearity: ≤0.2%
    • Phase Angle Error: ≤15 @input = 5 A and sampling resistor 50 Ω
    • Permissible Error: -0. 2%≤f≤+0.2% @5A and 50 Ω
    • Operating Temperature: -40°C to +85°C
    • Construction: Epoxy encapsulation
    • Installation: PCB mounting（Pin Length>3mm）
    • Module Dimension: 18mm x 38mm. CityTech BD


    Package Includes:

    • 1 X ZMCT103C Current Transformer 5A AC Current Sensor Module. CityTechBD
