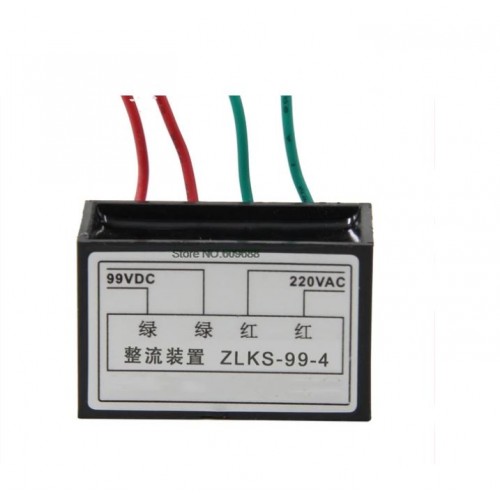

ZLKS-99-4 Motor Brake Fast Rectifier Power Mould

Description

ZLKS-99-4 Motor Brake Fast Rectifier Power Mould in Bangladesh (BD)

Specification of ZLKS-99-4 Motor Brake Fast Rectifier Power Mould:

  • Input and Output Protection: Equipped with input and output protection circuits, this rectifier is suitable for high frequency work of inductance devices.
  • Compact and Sealed Design: Boasting a beautiful appearance and small size, the rectifier is designed for YEJ motor standard working environments.
  • Butler Engine |Switching From Efi To Carb| Fast Brake Performance:Achieve rapid braking with the ZLKS-99-4's easy wiring, eliminating the need for contact access on the DC side. CityTech BD
  • Versatile Input Voltage:Available in 220V and 380V input, the ZLKS-99-4 caters to various power needs for electromagnetic brakes.
  • Easy Installation:The rectifier's direct installation in the motor terminal box ensures a hassle-free setup for the DMZ series.


It has the following characteristics:

a. Brake fast, easy wiring, without access to contacts in the rectifier DC side, you can achieve rapid braking.

b. Beautiful appearance, small size, good sealing, suitable (YEJ) motor standard working environment, can be installed directly in the motor terminal box.

c. With input and output protection circuits. Adaptation for high frequency work of inductance device. CityTech BD

The performance parameters:

Data Model

Input voltage (V AC)

The output voltage (V DC)

KZL-99-4

220V

99V

KZL-170-4

380V

170V


PACKAGE INCLUDES :

1 x ZLKS-99-4 Motor Brake Fast Rectifier Power Mould. CityTechBD
