XL6009 DC-DC Step Up Boost Module


Description: DC DC Step Up XL6009 Adjustable Boost Converter 3-34v To 4-35v Power Supply Module

XL6009 DC To DC Boost Converter XL6009 Step Up Boost Converter XL6009 Boost Converter 3-34V To 4-35V Adjustable Power Supply Voltage Regulator Adapters XL6009 Module For Arduino

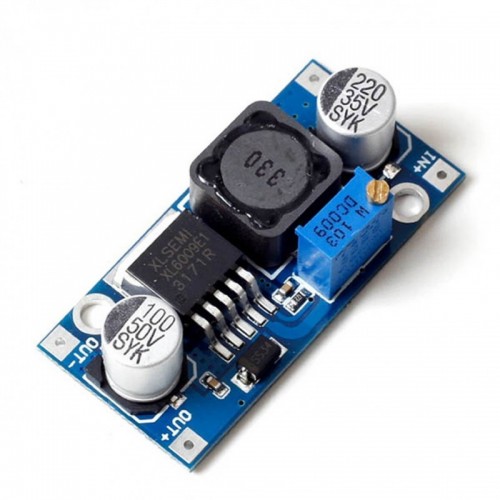

This is a DC-DC boost converter step-up power module with high-precision potentiometer, and it uses XL6009E1 with the second generation of high-frequency switching technology as core chip, so that its performance is much higher than the first-generation technology LM2577. With high switching frequency of 400KHz, even small-capacity filter capacitors can bring with very nice results, while the ripple is less and the size is smaller.


  • Type: Switching type DC-DC Step Up Boost Module;
  • Model : XL6009
  • Input voltage: 3-34 V.
  • Output voltage: continuous adjustable (4-35 V).
  • Output current: 2.5 A (MAX).
  • Input current: 3 A (MAX).
  • Operating temperature:-40℃~+85℃
  • Input methods: IN + input is level, IN-input negative.
  • Output way: OUT + output is level, OUT-output negative.
  • Adjustment: first correct by input power supply (3-34 V, between) again using a multimeter to monitoring output voltage and the potentiometer (turn step-down, in reverse chronological turn boost).
  • Output voltage: 4-35 V continuous adjustable (the construction no-load commissioning) our default shipping voltage 12 V if you require other voltage can tune ourselves.
  • Dimensions: 45x 20x14mm
  • Weight : 11gm


  1. IN+ input positive
  2. IN- input negative!
  3. OUT+ output positive
  4. OUT- output negative

Test comparison sample reference:

  • Input 3V Output 12V 0.4A 4.8W
  • Input 5V Output 12V 0.8A 9.6W
  • Input 7.4V Output 12V 1.5A 18W
  • Input 12V Output 15V 2A 30W
  • Input 12V Output 16V 2A 32W
  • Input 12V Output 18V 1.6A 28.8W
  • Input 12V Output 19V 1.5A 28.5W
  • Input 12V Output 24V 1 A 24W


  • DIY a mobile power supply
  • Boost charger
  • Power supply for electronic equipment
