Industrial Equipment Digital Sensor 50-1500kg Weighing Inductor Load Cell In BD:

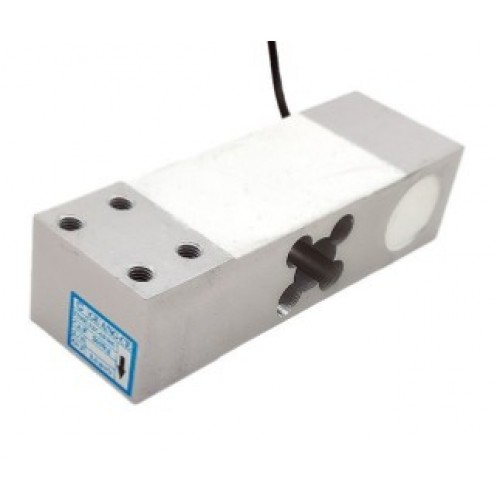

The Industrial Equipment Digital Sensor 50-1500kg Weighing Inductor Load Cell is designed for precise weight measurement in industrial applications. Built with high-quality alloy steel and advanced strain gauge technology, it ensures accuracy, durability, and long-term stability. This load cell is suitable for platforms, hopper scales, and other industrial weighing systems. With a wide capacity range from 50kg to 1500kg, it delivers reliable performance even under heavy loads. Easy to install and resistant to environmental factors, this weighing inductor is an ideal choice for industries requiring consistent and accurate measurement. Featured By CityTech BD

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Specifications

Capacity: 50kg to 1500kg

Material: Alloy Steel

Type: Digital Sensor Weighing Inductor Load Cell

Output: High Accuracy Strain Gauge Technology

Applications: Industrial Weighing, Platform Scales, Hopper Scales, Process Control

Durability: Corrosion Resistant, Long Service Life

Installation: Easy Mounting and Integration

Ingress Protection	IP65
Application	Platform Scale
Output Sensitivity(FS)	2.0 +/- 0.002 mV/V
Creep Error (30 minutes)	+/-0.03% FS
Temperature Effect on Zero	+/-0.0015% FS/DegC
Temperature Effect on Output	+/-0.002% FS
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Ultimate Safe Overload	250% FS
Recommended Excitation Voltage	5 to 15V DC
Input Resistance	390 +/- 15 Ohms
Output Resistance	350 +/- 3 Ohms
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperatue Range	-20 to +70 Deg C

Capacity : 50kg
Capacity : 100kg
Capacity : 200kg
Capacity : 300kg
Capacity : 400kg
Capacity : 500kg
Capacity : 600kg
Capacity : 700kg
Capacity : 750kg
Capacity : 800kg
Capacity : 1000kg
Capacity : 1200kg
Capacity : 1500kg
