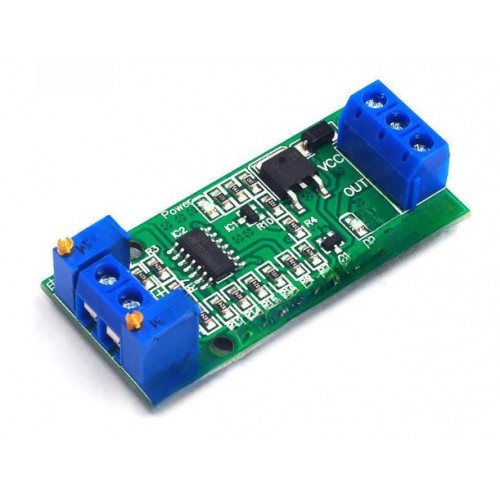

Voltage to Current Transmitter Signal Module

Description

This is a 0-5V to 4-20MA Voltage-to-Current Module. The module is used to convert Voltage into Current.so, In the process of circuit signal transmission, the voltage signal will increase with the transmission distance becoming weak, the use of current transmission can avoid the signal weakening. This module is used for the end of the current signal transmission, the signal into a voltage signal for single-chip detection. Current Input support 4-20Ma, 0-20mA, voltage output support 0-3.3V 0-5V 0-10V. CityTech BD

Features and Specifications:

power supply: DC 7-30 V
Input Voltage: 0-10V
Output current: 4-20mA
drifting temperature: +/- 100ppm / ℃
Ambient temperature: -10 ℃ ~ 60 ℃
Storage temperature: -20 ℃ ~ 85 ℃
Relative Humidity: 10-90% RH
air pressure: 86-106Kpa
Wide supply voltage range, the output has multiple voltage ranges
Zero and range can be adjusted CityTech BD
High stability, good linearity, industrial grade
Current signal sampling resistor with high precision color ring resistance, high precision, temperature drift small, high power

General Specification
Power Supply	12v~24v
Input Voltage	0~5v
Output Current	4-20mA
Zero and Span	Adjustable
Shipment Weight	0.020 kg
Shipment Dimensions	5.5 × 2.5 × 1.5 cm

Package Includes:

1 x Voltage to Current Transmitter Signal Module 0-5V to 4-20mA Linear Conversion
