Description

TTL RS485 To USB 2.0 Serial Converter Adapters Module FTDI Interface Board FT232RL FT232 Chip Dual Function Double Protection SN75176 Serial Converter Adapters Price in Bangladesh

TTL RS485 To USB 2.0 Serial Converter Adapters Module FTDI Interface Board FT232RL FT232 Chip Dual Function Double Protection SN75176 Serial Converter Adapters CityTechBD

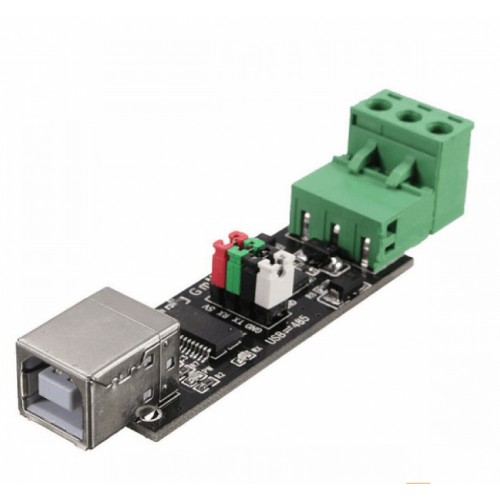

USB To TTL RS485 Converter Adapter Module FT232RL Dual Function is a FTDI Based USB 2.0 to RS-485 converter module. It supports multi-point communication with each converter able to connect to 32 devices. It provides two way communication moreover you can also use it as USB to TTL converter or TTL to 485 converter as well.

It supports USB 2.0 standard and has backward compatibility. It is in line with standard RS485 Direction Control. It supports wide baud rate from 300-9216000 bps. It supports various devices with 485 communication like Programmable Logic Controllers (PLC), fingerprint attendance machines, Surveillance Cameras, PBX, CNC Machines etc.

Standard: Conforms to USB2.0 standard, backward compatible, conforms to RS485 standard.
Direction control: adopt data flow to automatic control technology to automatically determine and control the direction of data transmission.
Baud rate: 300-9216000bps, automatically detects the serial signal rate.
Load capacity: support point to multiple points, each converter can allow the connection of 32 RS485 interface devices.
Interface protection: TVS tube protection, USB self-recovery protection. CityTechBD

Specifications:

Support Windows98 / ME / 2000 / XP / WIN7 / Vista / Linux / Mac
Support devices with RS485 interface: surveillance cameras, video capture device, fingerprint attendance machine, PBX,
CNC machine, microcontroller, etc.
This converter provides two way serial communications signal
Conversion between the RS485
To and from a personal computer USB port
Using virtual serial COM port
Self-powered from USB
Standard: USB2.0 standard, backward compatible, in line with the standard RS485
Direction control: the use of automatic data flow control, auto distinguish and control data transfer direction
Baud: 300-9216000bps, automatically detecting the serial signal data rate
Load capacity: support multipoint, each converter allows RS485 interface device to connect 32 Interface
Protection: TVS tube protection, USB self-recovery protection
Size: Approx. 76 x 18.5 x 16mm CityTechBD

Features:

1. Standard: USB2.0 standard, downward compatible, RS485 standard.
2. Direction control: Data flow automatic control technology is used to automatically identify and control the direction of data transmission.
3. Baud rate: 300-9216 000 bps, automatic detection of serial signal rate.
4. Load capacity: support point to multi-point, each converter can be allowed to connect 32pcs RS485 interface devices.
5. Interface protection: TVS tube protection, USB self-recovery protection.
6. Support for Windows 98/ME/2000/XP/WIN7/Vista, Linux, for Mac. CityTechBD

Note:

Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item.
