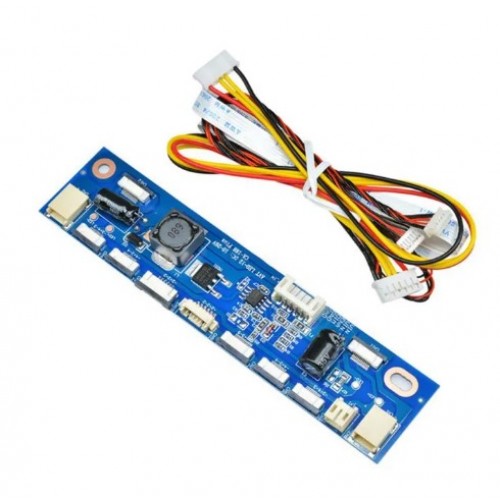

Universal 26-65 Inch Led Lcd Tv Backlight Driver Board & Inverter for Backlight Led Constant Current Board Driver Board

Description

Universal 26-65 Inch Led Lcd Tv Backlight Driver Board & Inverter for Backlight Led Constant Current Board Driver Board

  • set2: 1x Universal Inverter + 1x 4 pin cable & 1x board + 1x cord and high qualityDescription:Not provide technical support. you should know how to use it. If not, think twice before your order. Thanks!Product Name:Super universal interface 2P 6P 10P 12P full interface universal LED boost board LED high voltage boardLED connection must pay attention to the definition of the interface is only positive and negative points, the positive input supply must not be reversed or wrong, Improper connection caused by the consequences of their own, special reminder, but also understanding.
  • set2: 1x Universal Inverter + 1x 4 pin cable & 1x board + 1x cord
    and high quality
Super universal interface 2P 6P 10P 12P full interface universal LED boost board LED high voltage board
LED connection must pay attention to the definition of the interface is only positive and negative points, the positive input supply must not be reversed or wrong, Improper connection caused by the consequences of their own, special reminder, but also understanding.

Type:Industrial Computer Accessories
Input: support 10-28V DC input
with protection.
Output voltage below 88V automatically.
change the current is convenient
Size:13 x 3cm
LED high-pressure board conversion instructions
1: Connect the , ground, and switch signals required by the booster board to the universal LED booster board
VCC ON Switch Signal ADJ Brightness Control GND Ground
HINT: Connect the same way as the LCD high voltage board
2: with a multimeter to measure the amount of LED light bar is the number of lines, which are a few negative which are the number of lines which are a few lines
Line is only in the more positive and negative points, engage in technology should not amount to see the original boost board can see out of the definition.
Size:12.3cm x 3.1cm
Interface definition: Outputs 12 interfaces
3 + 4-3
4 + 2-4
+ 3-9
1 + 1
2 + 2-2 electronic wire
2 + 2-2FFC
4 + 2-4
3 + 4-3
5 + 2-5 x 2
Small mouth x 2
Input: supply switch signal brightness control ground wire
(Same as LCD)
Not all of the interfaces are soldered on, we pre-installed one or more details see above description.
Colour:blue
Material:Plastic + metal

Package Contents:
1x Universal Inverter
1x 4 pin cable
1x board
1x cord

Only the above package content, other products are not included.
Note: different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.














What’s in the box: Universal 26-65 Inch Led Lcd Tv Backlight Driver Board & Inverter for Backlight Led Constant Current Board Driver Board
