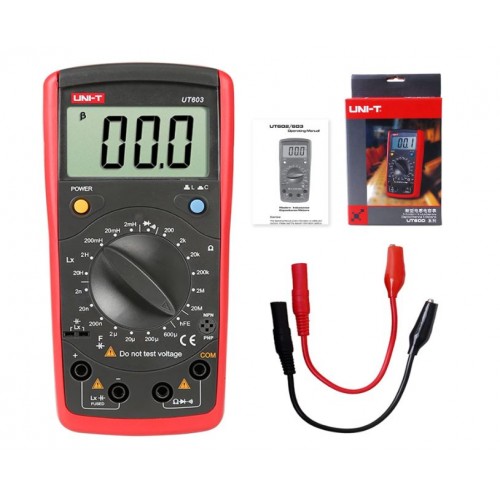

UNI-T UT603 LCR Meter


The UNI-T UT603 is an LCR meter, which is a specialized tool used to measure inductance, capacitance, and resistance values of electronic components.

The UT603 has a 3 1/2 digit LCD display and can measure capacitance up to 200 microfarads, inductance up to 20 henries, and resistance up to 20 megaohms. It also has a range selector function and a data hold function. CityTech BD

The UT603 is powered by a 9-volt battery and is housed in a durable and ergonomic plastic case. It also features overload protection and is designed to meet the safety standards of EN61010-1, CAT III 300V.

The UT603 is a reliable and accurate tool used in a variety of applications, such as circuit design, electronic repair, and quality control. CityTech BD

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

General Features
Resistance (Ω)200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ±(0.8%+1)
Capacitance (F)



Inductance (H)2mH/20mH/200mH/2H/20H±(2%+8)


  1. Display count 2000
  2. Manual range Yes
  3. Precise Diode Measurement
  4. Transistor Measurement
  5. Continuity buzzer
  6. Low battery indication. CityTech BD
General Specification
Power9V battery (6F22)
Display61mm x 32 mm
Product colorRed and grey
Product net weightUT601/UT602: 310g, UT603: 312g
Product size172mm x 83mm x 38mm
Weight (gm)312
Shipment Weight0.315 kg
Shipment Dimensions17.5 × 8.5 × 4 cm

CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD

Package Includes:

1 x UNI-T UT603 LCR meter. CityTech BD
