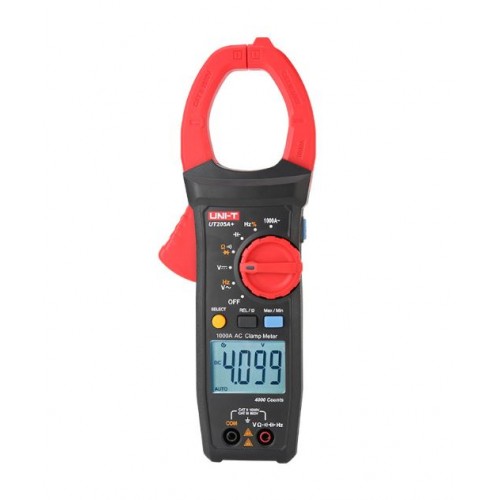

UNI-T UT205A+ Digital Clamp Meter 1000V AC-DC Voltage 1000A AC Current Resistance Tester Multimeter

Description

UNI-T UT205A+ Digital Clamp Meter 1000V AC-DC Voltage 1000A AC Current Resistance Tester Multimeter in Bangladesh (BD)

UT205A+ 1000A AC-DC clamp meters are reliable and portable tools for electronics and electrical maintenance. Featuring a lightweight and slim design, and backlight for working in dark environments. These meters also feature duty cycle, NCV, MAX/ MIN, and Inrush current measurement. CityTech BD

Specifications:

Specifications	Range	UT205A+
AC current (A)	1000A	±(1.5%+5)
Inrush current (A)	600A
AC voltage (V)	1000V	±(1.0%＋2)
ACV frequency (Hz)	10Hz～10kHz	±(1.0%＋5)
DC voltage (V)	1000V	±(0.7%＋3)
Resistance (Ω)	40MΩ	±(0.8%+2)
Resistance (Ω)	60MΩ
Capacitance (F)	40mF	±(4%+5)
Capacitance (F)	60mF
Frequency (Hz)	10.00Hz～10.00MHz	±(0.1%+4)
Temperature (℃/℉)	–40℃～1000℃/–40℉～1832℉
Features
Display count	4099
Jaw opening	45mm
Auto range	√
Duty cycle	√
NCV
Diode test	√
Continuity	√
Low battery indication	＜2.5V approximately	√
Data hold	√
Auto power off	Approximately 15 minutes	√
Max/Min	√
Flashlight	√
Backlight	√
Safety rating	CAT II 1000V/CAT III 600V	√
General Characteristics
Power	AAA 1.5V x 2
Standard accessories	Test leads, batteries, temperature probe(UT206A+), English manual
Product color	Red+Gray
Product net weight	235g (Including batteries)
Product size	242×76.5x52mm
Standard individual packing	Gift box carrying bag
Standard quantity per carton	20 pcs
Standard carton measurement

Descriptions:

1000A AC current measurement
1000V AC/DC voltage measurement
600A inrush current measurement (UT205A+)
Temperature (UT205A+)
NCV (UT205A+)
ACV frequency 10Hz～10kHz
Jaw opening: 45mm
Resistance / capacitance / frequency measurement
Auto range / backlight / low battery indication
Continuity / diode / duty cycle
MAX/MIN
Data hold / flashlight / relative mode
Auto power off
CAT II 1000V/CAT III 600V
