Power Transformer 24V 6A in Bangladesh

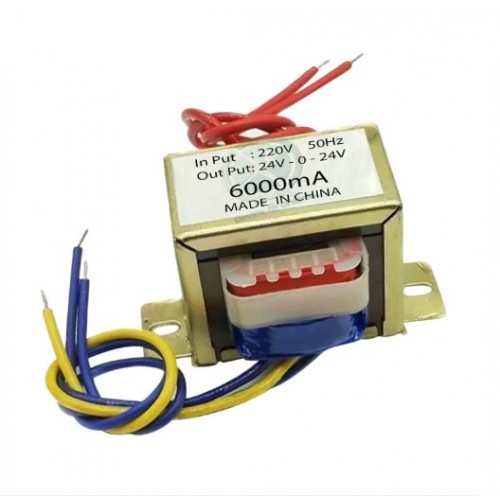

24V-0V-24V 6 Amp Step-Down Transformer is a general-purpose chassis mounting mains transformer. The transformer has 230V primary winding and non-centre tapped secondary winding. The transformer has flying coloured insulated connecting leads ( Approx 100 mm long ). The Transformer act as a step-down transformer reducing AC – 230V to AC – 24V. CityTechBD
The Transformer gives outputs of 24V and 0V. The Transformer’s construction is written below with details of Solid Core and Winding.
The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serving to greatly reduce the magnetizing current and confine the flux to a path that closely couples the winding. CityTechBD
Features:
- Soft Iron Core.
- 3 Amp Current Drain.
- 100% Copper Winding
- DIY projects Requiring In-Application High current drain.
- On chassis AC/AC converter.
- Designing a Battery Charger. CityTechBD
| General Specification |
| Input Voltage (V AC) | 230 |
| Output Voltage(V) | 24 |
| Max Output Current (mA) | 6 |
| Winding Type | Copper |
| Mounting Type | Vertical mount type |
| Shipment Weight | 1.195 kg |
| Shipment Dimensions | 12 × 8 × 6 cm |
Package Includes:
1 x Transformer 24 Volt 6 Amp . CityTechBD
