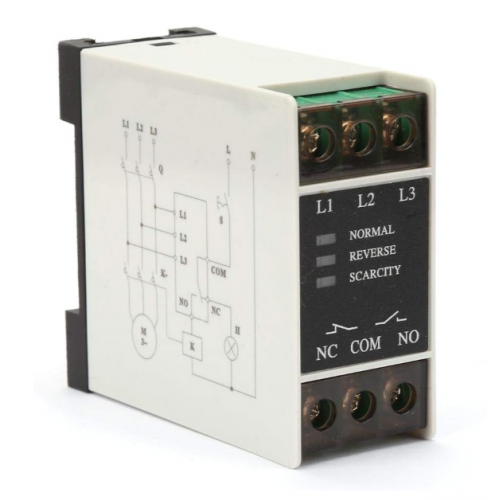

TG30S 220-440V AC 3-Phase Sequence Protection Relay Voltage Phase Protective Relay TL-2238

Description

TG30S 220-440V AC 3-Phase Sequence Protection Relay Voltage Phase Protective Relay TL-2238 Price in BD

Ensure safety and performance with the TG30S 220-440V AC 3-Phase Sequence Protection Relay. Designed for industrial and commercial 3-phase systems, this relay provides reliable protection against phase loss, reverse phase, and unbalanced voltage. It features a compact design, LED indicators, and a wide voltage range of 220V to 440V AC, making it ideal for motors, pumps, and heavy-duty electrical equipment. Built to prevent costly equipment damage, the TG30S is a trusted solution for electrical safety in Bangladesh. Featured By CityTech BD

Protection Features:

1. Dynamic phase loss and static phase loss protection: refers to the power failure of any phase when the protected equipment is in operation or non-operation state. The indicator form is: red light is on, and priority

2. Wrong-phase protection: A protective measure to the phase sequence of L1, L2, and L3 three-phase AC power from being connected incorrectly. Instant action. The form of the indicator light is: yellow light is on

3. Voltage unbalance protection: refers to the protection of the voltage unbalance rate that will affect the of the equipment due to the unbalance of the three-phase voltage. When the voltage unbalance rate is higher than 8%. The form of the indicator light is: the lack of phase red light is on, and priority is given

4. Delay protection: when a fault occurs, the monitor will act after a delay of 1 to 2 seconds, and the relay will release

Specifications:

Model : TG30S

Size: 72mm*30mm*64mm

Working voltage: 220-440 (220-660) VAC

Output current: 5A

Installation method: 3TH rail installation

Ambient temperature: -25-65

Package Includes:

1 x TG30S 220-440V AC 3-Phase Sequence Protection Relay. CityTech BD
