Description

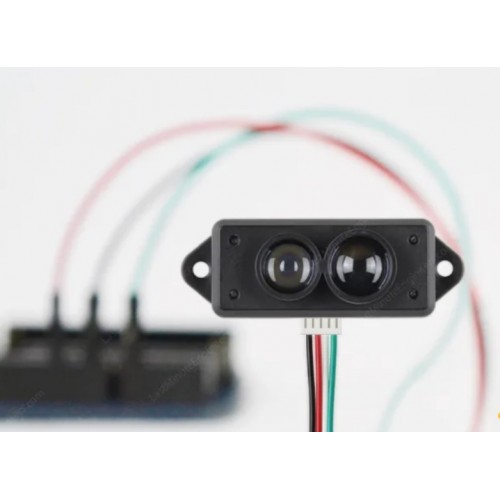

TFMini - Micro LiDAR Distance Sensor in Bangladesh/ BD
The TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) Laser Range Finder sensor has its unique optical, structural, and electronic designs, the product possesses 3 major advantages, low cost, tiny volume and low power consumption. It has built-in algorithm adapted to indoor and outdoor environments can guarantee an excellent ranging performance at a low cost and in a tiny volume, which highly expands the application fields and scenarios of LiDAR and lays a solid foundation for future “eyes” in the smart era. CityTechBD
TF Mini is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial types of equipment. Main Characteristics of TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) are, this product is based on TOF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection.
Features:
- Small size
- Lightweight
- Low power consumption
- High frame rate(up to 1000Hz)
Applications:
- Unidirectional ranging LiDAR.
- Obstacle avoidance.
- Assisted landing.
- Terrain following.
- Robots outdoor obstacle avoidance.
- Intelligent parking. Crane operations.
- Vehicle position sensing.
- Vehicle detection for barrier gate control.
- High-precision & High-speed measurement.
- Eye-safe infrared LED light.
- Compact size, lightweight.
- Good performance for height fixing and terrain-following drones. CityTechBD
-
| General Specification | |
| Operating Range | 0.1m~12m@90%Reflectivity |
| Accuracy | ±6cm@（0.1-6m) ±1%@（6m-12m） |
| Distance Resolution(cm) | 1 |
| Frame Rate(Hz) | 100 |
| Ambient light immunity | 70Klux |
| Operating Temperature(℃) | 0℃~60℃ |
| FOV | 2° |
| Supply Voltage(V) | 5V±0.1V |
| Average current(mA) | ≤140mA |
| Power Consumption(W) | ≤0.7W |
| Peak current(mA) | 200 |
| Communication Interface | UART / I2C |
| Cable Length(cm) | 10 |
| Dimension in mm(L*W*H) | 42*15*16 |
| Weight(g) | 5g±0.3g |
| Shipment Weight | 0.03 kg |
| Shipment Dimensions | 5 × 2 × 2 cm |
-
Documentation:
Package Includes:
1 x TFMini-S Micro LiDAR Distance Sensor
1 x Cable
1 x QC card
