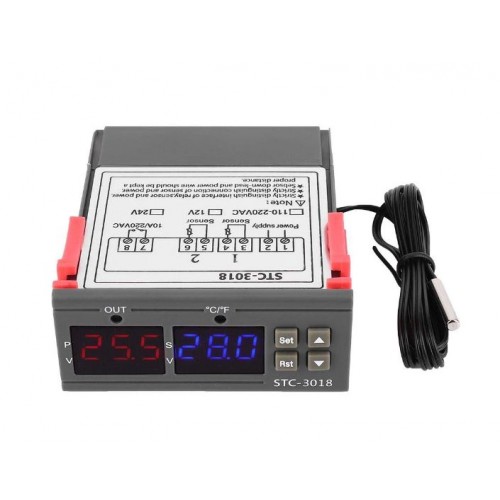

STC-3018 220V 10A Digital Temperature Controller 24V in Bangladesh
STC- 3018 AC110-220V Dual Digital Temperature Controller Thermostat is a Hygrometer C / F Thermostat. It has a Power supply of 110-220VAC. 5. It has application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc. CityTechBD
Normal mode: The red digital tube on the left shows the real-time temperature, the blue digital tube on the right shows the set temperature.
Setting mode: The red digital tube on the left displays the setting mode, the blue digital tube on the right displays the setting contents.
Product Images are shown for illustrative purposes only and may differ from the actual product. CityTechBD
How to set the start or stop temperature:
- Press the “SET” button once and the screen flashed, Press the “up” and “Down” button to set the temperature.
- Long press “SET”button for 5 seconds to enter set Mode:
Wiring Diagram:
Features:
1.Heating or cooling control. Red and blue dual led display
2.Control mode of return difference; Temperature display resolution 0.1
3.Multiple alarm mode selection; Switch between ° C and °F
4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid. CityTechBD
| General Specification | |
| Power supply | 110-220VAC |
| Measurement temperature range | -55 ° C ~ +120 ° C |
| Resolution | 0.1 |
| Accuracy | ±1 °C |
| Relay output contact capacity(heating) | 10A/240VAC |
| Relay output contact capacity(cooling) | 10A/240VCA |
| Temperature sensor | NTC 10K |
| Senor length | 1.0m |
| Power consumption | <3W |
| Shell material | gray ABS flame retardant plastic shell |
| Shipment Weight | 0.4 kg |
| Shipment Dimensions | 8 × 8 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
Package Includes:
1 x STC-3018 220V 10A Digital Temperature Controller 24V. CityTechBD
