SP36821.2 Smart Android TV Motherboard 45W 1GB+8GB 32″-52″ TV

Description

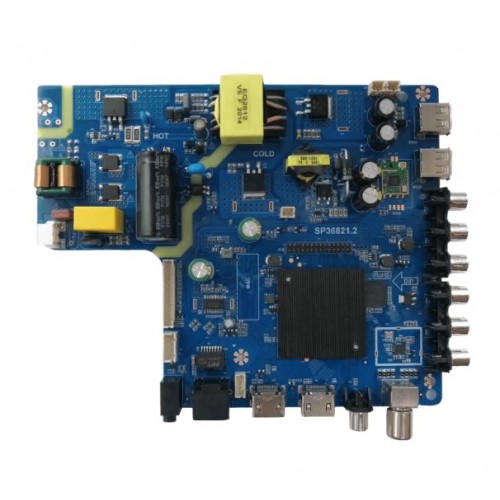

SP36821.2 Smart Android TV Motherboard 45W 1GB+8GB 32″-52″ TV

Universal android TV motherboard SP36821.2 Smart Android Board. This is a brand new smart android tv board for 32″ to 52″ LED TV.

The main highlighted thing and feature of this new android tv motherboard is size. This board Supports board up to 52″

The package includes:
Software installation : 1920×1080 or 1366×768
OS: Android 9 Pie
1 board
1 remote control
1 antenna
This 368 Series Smartboard.
Note: model can be changed depends on stock.
Three-in-one network driver board;
Smart Android with WIFI;
Support 24-55 inch LCD TV. Can be equipped with different screens.
Led/lcd tv main board, support
HD Resolution:1920*1080-1366*768
Led/Lcd Tv main support USB * HDMI Multimedia.
Combo boards
Resolution Codes
1920*1080. 03771
1366*768. 03772
SP368L21.2 With backlight power under25W/35W/45W, the main promotion backlight voltage is between 35V-65V/ 60V-100V and single backlight output. Standard configurations above could match any following backlight Spec. Specific backlight current can be selected according to the customer’s requirement. If the configurations below can’t meet your demand, please apply to our sales stuff.
Android Version: 9
Main Promotion Power and backlight Spec
PowerPower OutputBacklight ValueBacklight Connectors
50W12V+21V35V-65V/25W,2pin-2.0 +2pin-2.0
65W12V+21V35V-65V/35W2pin-2.0 ,+2pin-2.0
75W12V+36V60V-100V/45W2pin-2.0 ,+2pin-2.0
SP36821.2 Smart Android TV Motherboard 45W 1GB+8GB 32"-52" TV 1
Product Parameters


Board TypeLED TV 3-IN-1 Board
PanelPanel TypeTFT LCD
Max Resolutionup to 1920×1080@60Hz
InterfaceDual/Single LVDS
ATV INReception Range48.25MHz—863.25MHz
Input Impedance75Ω
Video SystemPAL,SECAM
Sound SystemBG,DK,I
Max Storage Channels99CH
DTMBReception RangeVHF (52.5MHz ~ 219MHz)
UHF (474MHz ~ 866MHz)
Input Impedance75Ω
Channel Bandwidth8MHz
ModulationTDS-OFDM
Video SystemMPEG-2,MPEG-4,H.264
Sound SystemMPEG-1 layer 1/2,MPEG-2 layer 2
Basic FunctionsEPG, Subtitle
Max Storage Channels400CH(dynamic)
AUDIO OUTPUTMax Output Power2X8W(8Ω)THD+N<10%@1KHz
Panel Voltage5/12V
RJ45 NETWORK10/100M auto-identification and DHCP
POWERAC InputAC90V-AC264V
Standby Consumption< 0.5W
Output Power50W/65W/75W
BACKLIGHTMax Output Power25W/35W/45W
Backlight Current200-780mA
Backlight Voltage35V-65V&60V-100V
