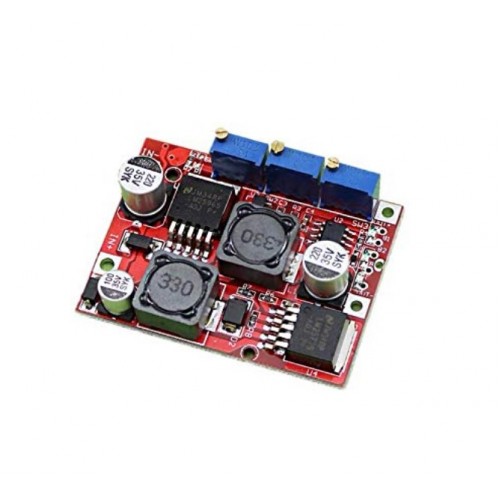

Solar/Wind energy Charging CC/CV Power Supply Module

Description

It is an LM2596-based Solar Energy Wind Belt Charging Constant Current Constant Voltage Power Supply Module with Applications of DIY Power Adapter/Charger. Which can be used to charge batteries by using wind/solar energy the module has an onboard constant current power supply. CityTechBD

Note:

  1. Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)
  2. Indicator: constant current Indicator Red, Charging indicator Red, Full charge indicator Blue.
  3. Output short circuit protection: Yes, constant current (constant current setting values)
  4. Input Reverse Polarity Protection: None (Please Series diode at the input port.)
  5. Connection: Welding, can be directly soldered to a PCB.

Note: This Product is available in two different variants of IC ( LM 2577s and XL6019E1 ) with the same working, we will ship it randomly.


Features:

  1. Module Properties: non-isolated Buck-Boost constant current, constant voltage module (CC-CV) charging module
  2. High-power constant current LED driver.
  3. Battery charger (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charger, solar panels, wind generators.
  4. Solar Panel, Wind generator voltage regulator, Car Power Supply.
  5. Output Current: Rate 3A, Max 4A ( If more than 15W, please install the heat sink, this item does not include a heatsink)
  6. Constant current range: 0~2A (adjustable)
  7. if using Solar as a power supply, please ensure the input power is 1.1 times the output power. CityTechBD

Package Includes:

1 x Solar/Wind energy Charging CC/CV Power Supply Module
