Description

The Digital Multi Servo Tester ESC RC Consistency CCPM Master Speed Control offers 3 modes to check servos or ESC. The Manual Mode allows you to turn the knob to different speeds and check the reaction time. The Neutral mode makes the servo go back to the neutral point. The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible. CityTech BD

Plus, this servo tester can connect to up to 3 servos simultaneously. You can also connect up to 3 ESCs to test and compare their reaction time respectively.

This Servo Tester device can be used as a signal generator for electric speed controller (ESC). You can test your motor system without using transmitter and receiver. CityTech BD

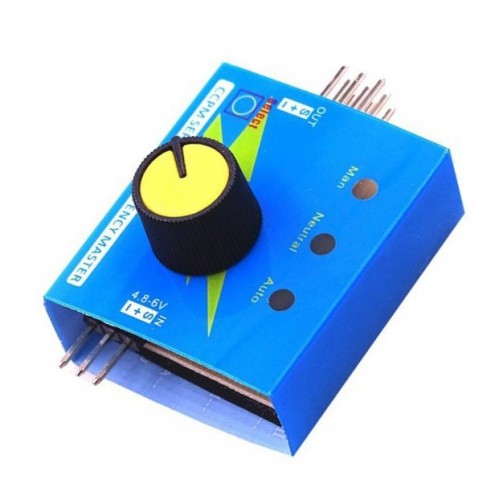

This little blue Servo Tester Module is a great tool that can connect with up to three Servo Motors simultaneously, to check the health and capabilities of them and identify how effective they can be for various tasks. It can check the response times, find the neutral points and identify the maximum angles that servos are capable of, with three different modes to make it simple to operate as well. Servo Tester has 3 modes to check or ESC:

Manual Mode uses the knob positioned on the front of the module to speed up or slow down the servo and see how quickly it reacts.
Neutral Mode makes the servo return to its neutral point.
Automatic Mode makes the servos turn to the maximum angle on each side.

While this module is designed to test servos, it can be used as a signal generator to test electric speed controllers (ESC) so that you don’t need to use a transmitter and receiver. This makes this module ideal for RC enthusiasts as well, as it can check the servos as well as the electric speed controllers that are typically found on RC planes and Quadcopters.

Warning: Only suitable for smaller and unloaded servos, for example, the SG90 and MG90.

Features :

Offer 3 modes to check servos or ESC
The Manual Mode allows you to turn the knob to different speeds and check the reaction time
The Neutral mode makes the servo go back to the neutral point
The Automatic ’’Window Wiper’’ Mode makes the servo swing like a window wiper in the largest angle possible
Connect to up to 3 servos simultaneously
Connect up to 3 ESCs to test and compare their reaction time respectively
Built with LED indicators. CityTech BD

General Specification
Output	15mA (5.0)
Operating Voltage (VDC)	4.8 ~ 6
Output Signal	1.5ms±0.5ms
Color	Blue
Dimensions in mm (LxWxH)	35x30x15
Knob Diameter(mm)	12
Weight (gm)	8
Shipment Weight	0.012 kg
Shipment Dimensions	6 × 4 × 3 cm
