This is a module that allows the TTL interface of the microcontroller to be transferred to the RS485 module. It is generally used for industrial automation. This module adds lightning protection design and anti-jamming design. When we use it in the field and carry out long distance transmission, we can Connect the GND end of the module to the ground so that lightning protection and anti-interference can be achieved.
It uses a standard 2.54 mm pitch design. If you want to make the second development will be more convenient. It has 120 ohm matching resistance, shorted R0 can, it is recommended that users in the long distance transmission shorted.
It supports communication between multiple microcontrollers, allowing up to 128 devices on the bus. It can be hot-swappable, in order to prevent signal interference, it carried out a large area of copper, the effect is very good. CityTech BD

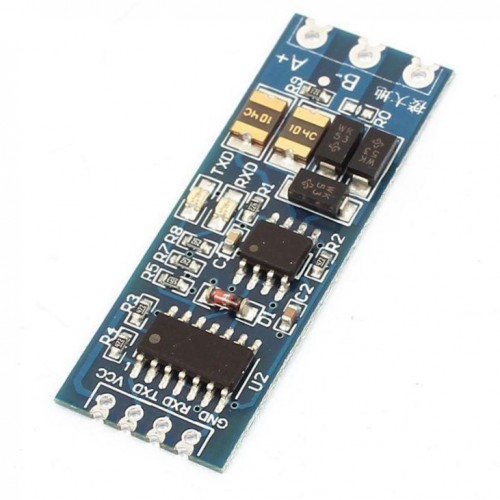

Product Images are shown for illustrative purposes only and may differ from the actual product.
Features:
- 3.3V perfectly compatible with 5.0V power supply
- Absolute using imported chips, industrial design, anti-interference ability, while using more effective mine design can be used in the industrial field and harsh field environments, the working temperature of -40 ℃ to + 85 ℃ transmission distance up to 1 kilometer (made with 850 meters of cable F1.5 tests recommended in the 800 meters, more than 800 m, please add repeaters).
- Transmission distance up to kilometers (with 850 meters of 2 * 1.5 cable to do the test, it is recommended to use in the 800 meters, more than 800 meters, please add repeaters)
- Semi-hole process design, the thickness of 0.8mm, makes it easy to use as a combo board, it can also be welded terminal use
- Has RXD, TXD signal lights to observe send and receive status
- The module is fully considered mine design, long-distance transmission signal 485 in the wild, the module "Connected to the ground" terminal is connected to the earth, can play a very good anti-jamming and anti-lightning effect, more secure; it can not connect with the ground when the indoor short-distance transmission.
- Using the standard 2.54 pitch design, easy secondary development.
- Has a 120 ohm termination resistors, shorted R0to enable the termination resistor.
- Support multi-machine communication, allowing access at up to 128 devices on the bus
- The module can be hot swapped, the signal does not appear dead phenomenon.
- A large area of copper to prevent interference. CityTech BD
General Specification |
Working temperature range | -40 ℃ to + 85 ℃ |
Communication method | Half duplex |
Pitch design | Standard 2.54 mm |
Shipment Weight | 0.005 kg |
Shipment Dimensions | 8 × 5 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
Documentation:


Package Includes:
1 x RS485 To TTL Module Stable UART Serial Port To RS485 Converter Function Board
