RS232 to RS485 Converter

Description

Price: 580৳
Stock: In Stock
Product Code: 891
Model: CBD-1568

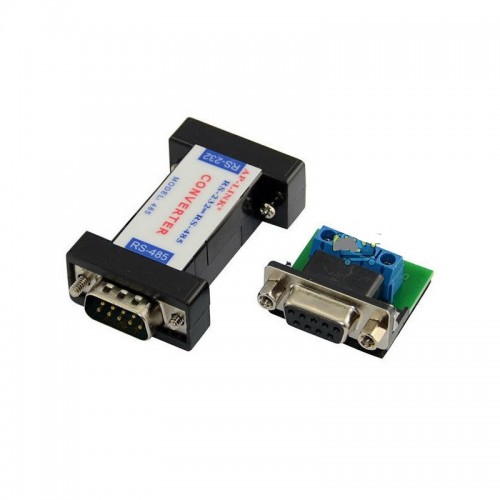

RS232 to RS485 serial port Data interface adapter Converter . It has electronic Interface At the side of RS-232 is a DB9 female(hole-type) connector and at the side of RS-485 is a DB9 male (needle-type) connector with connection board. It has Transmission Speed of 300-115200 bps. Common wire, double wire, UTP or Shielding Line are used as a transmission Media. CityTech BD

Applications:

Industrial automation,
Door safe,
All-in-one-card,
Car parking,
ATM,
Bus charge,
Staff attendance management,
Highway toll gate CityTech BD

Features:

Serial Port Feature: Compatible with EIA/TIA RS-232C standard and RS-485 standard
Working Modes: Asynchronous, half-duplex, differential transmission
Work Environment: -10°C to 85°C, relative humidity 5% to 95%
Transmission Distance: 1.2 mile (RS-485), 5 meters(RS-232)
Transmission Speed: 300-115200 bps
Transmission Media: Common wire, doule wire, UTP or Shielding Line
Serial Port Feature: Compatible with EIA/TIA RS-232C standard and RS-485 standard

General Specification
Working Modes	Asynchronous, half-duplex, differential transmission
Work Environment	-10°C to 85°C
Relative humidity	5% to 95%
Transmission Distance	1.2 mile (RS-485), 5 meters(RS-232)
Transmission Speed	300-115200 bps
Transmission Media	Common wire, double wire, UTP or Shielding Line
Shipment Weight	0.03 kg
Shipment Dimensions	8 × 5 × 1 cm
