RF Transmitter Receiver Pair 433 MHz

Description

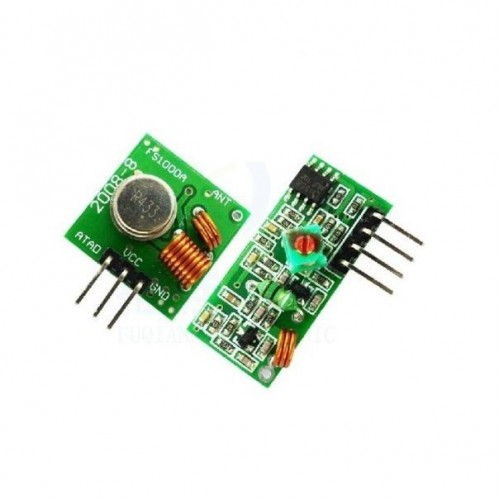

This RF module comprises an RF Transmitter and an RF Receiver. The transmitter/receiver (Tx/Rx) pair operates at a frequency of 433 MHz. An RF transmitter receives serial data and transmits it wirelessly through RF through its antenna connected at pin4.

The transmission occurs at the rate of 1Kbps – 10Kbps. The transmitted data is received by an RF receiver operating at the same frequency as that of the transmitter.

This low-cost RF transmitter can be used to transmit signals up to 100 meters (the antenna design, working environment, and supply voltage will seriously impact the effective distance). It’s good for a short distance, battery power device development. 433 MHz is the operating frequency for transmitter and receiver pair.

Features :

  1. Wide input supply (2.5 V to 12V)
  2. Easy to integrate (V+, GND, and Data)
  3. The device in deep sleep mode when Data pin is grounded
  4. Very small dimension.

Receiver Module specification :

Receiver

Operation voltage: DC5V
Static Current: 4MA
Receiver frequency: 433.92MHZ; 315 Mhz
Sensitivity:-105DB
Dimension:30*14*9mm
External Antenna:32CM signal wire, spiral

Transmitter Module Specification :

Operating voltage: 3-12V
Operating frequency: 433.92MHz; 315Mhz
Standby current: 0mA
Operating current :20-28mA
Transmission distance:> 500m (open to receiving plate sensitivity at-103dBm distance of more than)
Output Power: 16dBm (40mW)
Transfer rate: <10Kbps
Modulation mode: OOK (Amplitude Modulation)
Operating Temperature: -10 ℃ ~ +70 ℃
Size: 19 × 19 × 8mm

General Specification
Transmitter specificationAs per below
Operating voltage3-12V
Operating frequency433.92MHz; 315Mhz
Operating current20 – 28 mA
Transmission distance> 500 m
Output Power16dBm (40mW)
Transfer rate<10Kbps
Dimensions (mm)19 x 19 x 8 (L x W x H)
Receiver specificationAs per below
Operation voltageDC 5V
Receiver frequency433.92MHZ; 315 Mhz
Sensitivity-105DB
External Antenna32CM signal wire,spiral
Dimensions(mm)30 x 14 x 9 (L x W x H)
Shipment Weight0.06 kg
Shipment Dimensions5 × 5 × 3 cm

Package Includes :

1 x 433mHz Transmitter.

1 x 433mHz Receiver.
