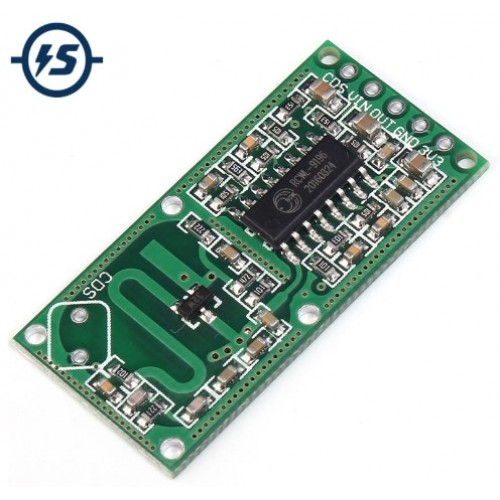

Microwave Radar Sensor Module RCWL-0516 Human Body Induction Switch Module

Description

The RCWL-0516 Microwave Radar Sensor module has been designed as an alternative to the common PIR motion sensors widely used in burglar alarms and security lights. Like the PIR sensor, this sensor also detects only movements within its detection range. CityTech BD

But instead of sniffing the blackbody radiation from a moving person, this sensor uses a “microwave Doppler radar” technique to detect moving objects. It has a sensitivity range of ~7 meters. When triggered, its TTL-level output (OUT) pin will switch from LOW (0 V) to HIGH (3.3 V) for a finite time (2 to 3 s) before returning to its idle (LOW) state. CityTech BD

This flexible sensor module can easily be used in conjunction with many microcontrollers and even without a microcontroller at all. It can handle power supply inputs anywhere from 4 to 28 V.

The output pin can be utilized for a multitude of tasks, such as for driving an aural/visual indicator or even linking with the I/O of any 3-V microcontroller for further processing. During construction, avoid any metal part in front of the sensor module. Similarly, always keep a minimum of 1-cm clear space on the front and rear side of the module. CityTech BD

Pinouts:

CDS — Sensor disable input (low = disable)
VIN — 4- to 28-V DC supply input
OUT — HIGH (3.3 V) motion detected/LOW (0 V) idle
GND — Ground/0 V
3V3 — Regulated DC output (100 mA max)

Features :

  1. Transmission signal processing control chip RCWL-9196
  2. Wide operating voltage range 4.0V to 28.0V
  3. Penetrating detection capability, compared with the traditional infrared feeling PIR
  4. Adjustable Block time and distance
  5. 3.3V output power supply. CityTech BD
General Specification
Operating Voltage (VDC)4 ~ 28
Max. Operating Current (mA)3
Detecting Range5-9m
Transmitting Power20mW (typical); 30mW (max)
Output Voltage(V)3.2 ~ 3.4
Output Voltage Driving Capacity100mA
Trigger WayRepeat Trigger
Output Control Low Level0V
Output Control High Level3.3V
Operating Temperature (°C)-20 to 80
Length (mm)36
Width (mm)17
Height (mm)2
Weight (gm)3
Shipment Weight0.005 kg
Shipment Dimensions5 × 3 × 1 cm

CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD

Documentation :

  1. Github Link

Package Includes :

1 x RCWL-0516 Microwave Radar Sensor Module Human Body Induction Switch Module
