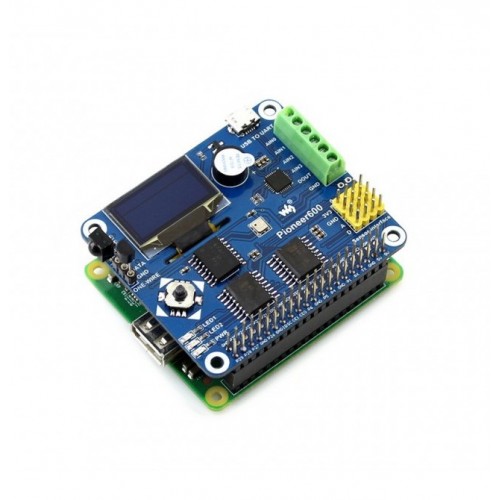

Raspberry Pi 3 Robot Shield Expansion Board Pioneer 600

Description

(Retired) This product will be retired when the stock runs out. This page is made available for those looking for datasheets and the simply curious.

Pioneer600 Raspberry Pi Expansion Board includes miscellaneous components, all on a single piece of hardware. It supports Raspberry Pi A+, Raspberry Pi B+, Raspberry Pi 2 Model B, and Raspberry Pi 3 Model B. Pioneer600 offers a standard I/O interface over various components and offers more GPIO possibility with the PCF8591.

With Pioneer you can control your Raspberry Pi through a serial terminal exploiting the onboard CP2102 and interface 0.96-inch OLED display just like a walk in the park. Some of the other peripheral features are high precision RTC DS3231, AD/DA PCF8591 with 8-bit resolution, LFN0038K IR receiver, and BMP180 Pressure/temperature sensor. CityTech BD

Product Images are shown for illustrative purposes only and may differ from the actual product.

Raspberry Pi Expansion Board, Miscellaneous Components, All-In-One

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • <Standard I/O> dual-LED, joystick, buzzer, the basic components
  • <USB TO UART> CP2102, control the Pi through a serial terminal
  • <Display> 0.96inch OLED, a big world in the little screen
  • <RTC> DS3231, high precision, backup battery holder is also available
  • <AD/DA> PCF8591, 8-bit resolution, screw terminal IO interface
  • <GPIO Expansion> PCF8574, more GPIO, more possibility
  • <IR Control> LFN0038K, Raspberry Pi remote control comes true
  • <Pressure Sensor> BMP280, measuring air pressure and temperature
  • <1-WIRE> for connecting 1-WIRE devices, DS18B20 is included
  • <Sensor Interface> for connecting various sensors

What’s on the Pioneer600:

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. USB TO UART: control the Pi through a serial terminal
  3. AD/DA IO interface: screw terminal
  4. 1-WIRE interface: for connecting 1-WIRE devices like DS18B20
  5. Sensor interface: for connecting various sensors
  6. 0.96inch OLED: SSD1306 driver, 128×64 resolution, SPI interface
  7. Buzzer
  8. CP2102: USB TO UART converter
  9. PCF8591 : 8-bit AD/DA converter, I2C interface
  10. BMP280: pressure sensor, I2C interface
  11. PCF8574: I/O expansion chip, I2C interface
  12. DS3231: high precision RTC chip, I2C interface
  13. Power indicator
  14. User LED
  15. Joystick
  16. LFN0038K IR receiver

0270

Features:

  • Supports Raspberry Pi A+ / B+ / 2B / 3B
  • Dual LED, joystick, buzzer, the basic components
  • CP2102 to control the Pi through a serial terminal
  • 0.96inch OLED, a big world in the little screen
  • DS3231, high precision RTC, backup battery holder is also available
  • PCF8591 AD/DA, 8-bit resolution, screw terminal IO interface
  • More GPIO possibility with PCF8574
  • LFN0038K IR receiver, a remote control your Raspberry Pi
  • BMP180 to measuring air pressure and temperature
  • One wire interface for connecting 1-WIRE devices, DS18B20 is included
  • Sensor Interface for connecting various sensors
General Specification
Screen-TypeOLED
Screen-Diagonal0.96"
Screen Resolution128×64 px
Length (mm)60
Width (mm)56
Height (mm)15
Weight (gm)100
Shipment Weight0.116 kg
Shipment Dimensions7 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

Package Includes:

1 x Raspberry Pi 3 Robot Shield Expansion Board Pioneer 600

1 x USB A to Micro USB Cable

1 x Screw set
