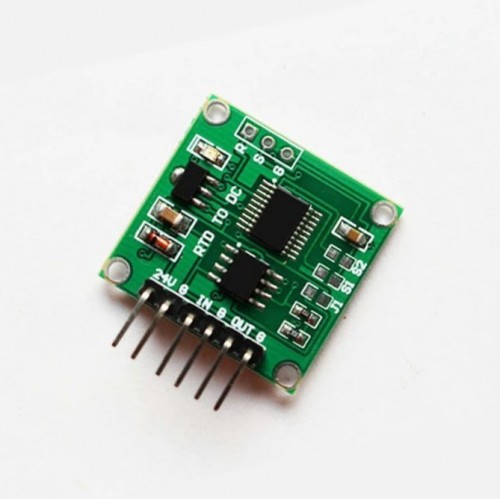

PT100 to 0-5V Converter PCB-mounted PT100 to 0-10V Conversion Module RTD PT100 to Voltage Signal Conditioner

Description

PT100 to 0-5V Converter PCB-mounted PT100 to 0-10V Conversion Module.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Application:

RTD PT100 sensor signal transmission.
PT100 signal monitoring.
Temperature signal data acquisition.
Meters & instruments signal conversion. CityTech BD

Pin Description:

24V 9-24V power supply +
G Power supply -
IN PT100 input +
G PT100 input -
OUT Output 0-5V(10V) +
G GND

General Specification
Operating power supply	9-24VDC. If output is 0-10V, the power supply must be 15-24VDC.
Input	PT100 thermal resistance
Input Temperature range	PT100: -100 to +500℃
Output	0-5VDC or 0-10VDC
Output signal switch	Default 0-5V output. If 0-10V output is required, theS2soldering pad must be in short-circuit.
Accuracy (PT 100 input)	Output 0-5V, the accuracy is 0.0083333V/℃. Output 0-10V, the accuracy is 0.0166666V/℃.
Operating Temperature	-10 C to +50 C
Dimension	26x23x10mm (LxWxH)
Shipment Weight	0.010 kg
Shipment Dimensions	12 × 8 × 2.5 cm

Documentation:

Temperature measured calculation formula:

[(Output voltage V)/Accuracy]-100℃=Temperature measured (℃)

Note: When the output of 0.00V ~ 10.00V, power supply voltage to 15 volts.

Output (0.00V ~ 5.00V) Resolution: 0.0083333V / C
Output (0.00V ~ 5.00V) Resolution: 0.0083333V / C

Package Includes:

1 x PT100 to 0-5V Converter PCB-mounted PT100 to 0-10V Conversion Module RTD PT100 to Voltage Signal Conditioner
