Description

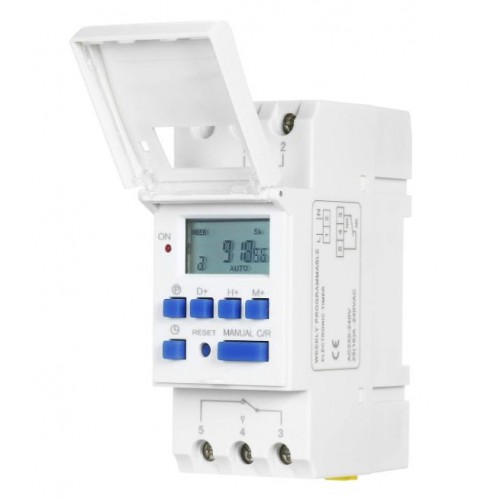

Programmable Timer Relay Control Weekly THC15A in Bangladesh

The THC15A Electronic Digital Timer Switch is a versatile and reliable relay control device that can be installed on DIN rail and has a wide range of voltage inputs. It has advanced pre-setting feature for one week in advance and offers a digital electronics general purpose time switch with daily and programs. It allows repeat programs with 16 on/off settings, 18 times pulse programs, and setting on/off manually. It also has a lithium battery power reserve feature which activate when the power supply is cut off and it also has auto time error correction +/- 30 sec, weekly. This timer switch is suitable for various applications such as automatic lighting control, HVAC control, industrial automation, agricultural automation and backup power control. CityTechBD

Features:

DIN RAIL Installation
Advanced pre-setting one week before.
Digital electronics general purpose time switch with daily and programs.
Repeat programs with 16 on/off settings, 18 times pulse programs, and setting on/off manually
Lithium battery power reserve when power supply is cut off.
Auto time error correction +/- 30 sec, weekly CityTechBD

Applications:

Automatic lighting control: The THC15A Electronic Digital Timer Switch can be used to automatically control lighting in commercial and residential buildings, turning lights on and off at preset times to save energy and improve security.
HVAC control: The switch can be used to control heating, ventilation, and air conditioning systems in buildings, automatically turning them on and off at preset times to conserve energy and improve comfort. CityTechBD
Industrial automation: The switch can be used in industrial settings to control various types of machinery and equipment, automatically turning them on and off at preset times to improve efficiency and reduce costs.
Agricultural automation: The switch can be used in agricultural settings to control irrigation systems and other farm equipment, automatically turning them on and off at preset times to improve efficiency and reduce costs.
Backup power control: The switch's lithium battery power reserve feature can be used to automatically switch on backup power systems in case of a power outage, ensuring continuity of operation in critical systems. CityTechBD

General Specification
Voltage rating	AC 220V 50/60 hz DC 12V, DC 24V, AC110V, AC380V, AC/DC 24V -240V
Voltage limit	10%
Hysteresis	2sec/day
On/Off Operation	16 on & 16 off, 18 times pulse
Power consumption	7.5 VA(max)
Display	LCD
Service Life	Mechanical and Electrical 10years
Minimum interval	1 minute
Weight	140g
Shipment Weight	0.143 kg
Shipment Dimensions	18 × 8 × 5 cm
