Description

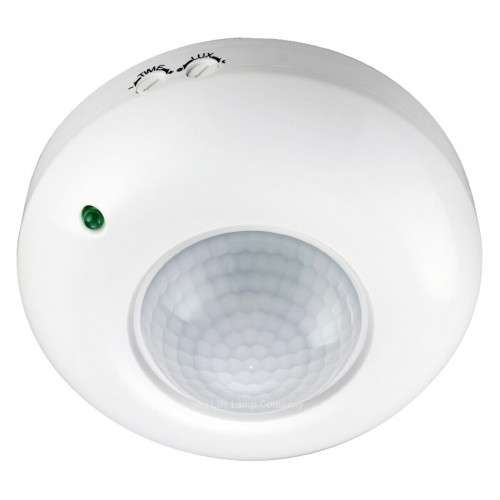

PIR Sensor 360 Degree Ceiling Mounted in Bangladesh (BD)

A passive infrared sensor (PIR sensor) is an electronic sensor that measures infrared (IR) light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. PIR sensors are commonly used in security alarms and automatic lighting applications. CityTech BD

Product Images are shown for illustrative purposes only and may differ from the actual product.

CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD

Infrared motion sensor:

Thanks to the high-quality infrared motion sensor from Maclean, the light always turns on exactly when it is really needed.

Detection range of 360 degrees:

This infrared motion sensor from Maclean Energy has a detection range of 360 degrees and a maximum detection range of 6 meters. The required mounting height is 2.2 to max. 4 meters.

Wide adjustment options:

The ambient light can be adjusted from 3 to max. 2000 lux and the adjustable light time from 10 seconds up to max. 7 minutes.

Features:

Input voltage: 230V/50Hz. Maximum load: 1200W standard bulb / energy saving bulb 300W
Range of motion detection distance up to 6 m at 24˚C. The angle of the sensor: 360˚
Lighting time (adjustable): from 10 seconds to 7 minutes. Threshold (adjustable): from 3 to 2000 lux. Protection class IP 20 (for indoor use)
Operating temperature: -20˚C to +40˚C. mounting height: 2.2 to 4m. speed motion detection: 0.6~1.5 m/s
Material: plastic in white. device works seamlessly with LED bulbs

CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD

General Specification
Power supply	220 - 240 A/AC.
Frequency	50/60 Hz.
Ambient light	3-2000 LUX.
Adjustable light time	10 - 3s / 7 - 2min.
Detection range	360 degrees and max. 6 m. (at 24 Celsius degrees).
Mounting height	2.2 - 4 m.
Working temperature	-20 - +40 degrees Celsius.
Humidity	<93% RH.
Power consumption	0.45 W / 0.1 W.
Lamp	1200 W and 300 W (with energy-saving bulb).
Speed/Motion Detection	0.6 ~ 1.5 m/s.
Shipment Weight	0.165 kg
Shipment Dimensions	12 × 12 × 7 cm
