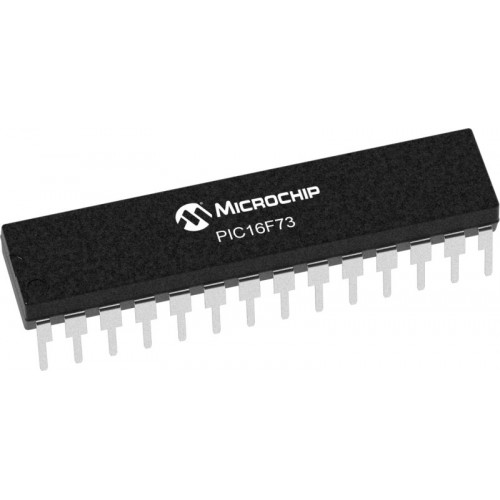

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F73 features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, 2 capture/compare/PWM functions and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications. CityTech BD
Features:
- Power-on Reset (POR)
- Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
- Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
- Programmable code protection
- Power saving SLEEP mode
- Selectable oscillator options
- In-Circuit Serial Programming (ICSP) via two pins. CityTech BD
|
General Specification
|
|
Program Memory Type
|
Flash
|
|
Program Memory Size (KB)
|
7
|
|
CPU Speed (MIPS/DMIPS)
|
5
|
|
Data EEPROM (bytes)
|
0
|
|
Capture/Compare/PWM (CCP)
|
2
|
|
Enhanced Capture/Compare/PWM (ECCP)
|
0
|
|
Max 8 Bit Digital Timers
|
2
|
|
Number of ADCs
|
1
|
|
ADC Channels
|
5
|
|
Max ADC Resolution (bits)
|
8
|
|
Number of Comparators
|
0
|
|
Number of USB Modules
|
0
|
|
Number of CAN Modules
|
0
|
|
Segment LCD
|
0
|
|
Ethernet
|
None
|
|
Temp. Range Min.
|
-40
|
|
Temp. Range Max.
|
125
|
|
Operation Voltage Max.(V)
|
5.5
|
|
Operation Voltage Min.(V)
|
2
|
|
Pin Count
|
28
|
|
Low Power
|
No
|
|
Shipment Weight
|
0.005 kg
|
|
Shipment Dimensions
|
3 × 3 × 3 cm
|
CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD
Documentation:
- Datasheet
Package Includes:
1 x PIC16F73 Microcontroller. CityTech BD
