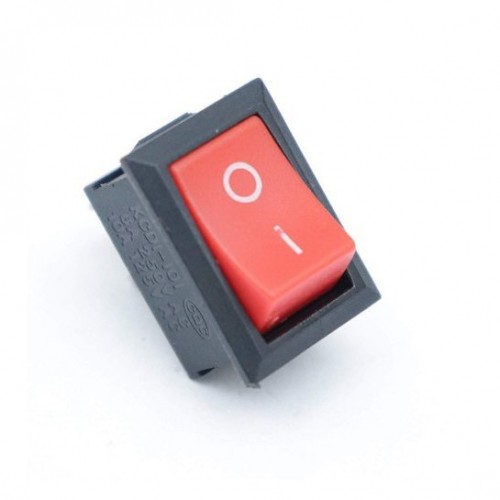

On / Off Switch (Mini)


This is a basic On/Off SPST Rocker Switch for your projects. No screws required, it simply clips into place. This is a two-pin switch that is easy to use, simply cut one of the two power wires and solder each of the ends to the unit. CityTech BD

This 3A 250V AC KCD1-11 On-Off Rocker Switch is perfect for controlling power to electronic circuits, robots, etc. We have carefully selected the best On/Off Rocker Switch with a high load rating and the perfect size to for all general-purpose On/Off applications. This rocker switch has two positions – one on position and another off position. The rocker switch stays in the one till it is pressed and changed to the other position. It has two large pins on the backside to which wires can be soldered and connected to your circuit. CityTech BD

The KCD1-11 On/Off Rocker Switch is the simplest and easiest power control switch for your project. It comes with tabs on the top and bottom which secure it onto an enclosure without the need for any screws. On and Off positions are clearly marked which help users identify the current switch position during usage.

This switch is great to turn on/off and control DC Motors in Robotics, Car and Motorcycle DC Motors, DC Motors in Industrial Machines, Water Dispensers, etc. We have sourced the best switch with a high load rating of 3A at 250VAC which should be suitable for most applications.

  • Switching Mode: ON-OFF
  • Structure: SPST


  1. Positions Marked on the rocker: I, O (On and Off) for easy identification
  2. Long Switching Life: 500-1000 Cycles
  3. Easy installation, No Screws or Nuts required
  4. Used widely for on/off power control, car, motorcycle, boat, some machines, water dispenser, etc.
General Specification
Model numberKCD1-11 13.5x9mm series
Perforate dimensions13.5 x 8.5 mm
Contact rating3A@250VAC
Contact resistance50mΩ max
Insulation resistance100MΩ min at 500Vdc
Dielectric strength1500Vac, 50Hz for 1min
Electrical Life1000 cycles
Matched plug spring terminal4.8mm mounting size with jacket
Operating temperature-25-85 ℃
Shipment Weight0.005 kg
Shipment Dimensions3 × 3 × 3 cm

Package Includes: CityTech BD

1 x 3A 250V AC KCD1-11 On / Off Switch (Mini)
