Name: OMRON K8AK-PH1 3 Phase Voltage Monitoring Relay
Brand: OMRON
Price: 4499.00 BDT
Availability: InStock

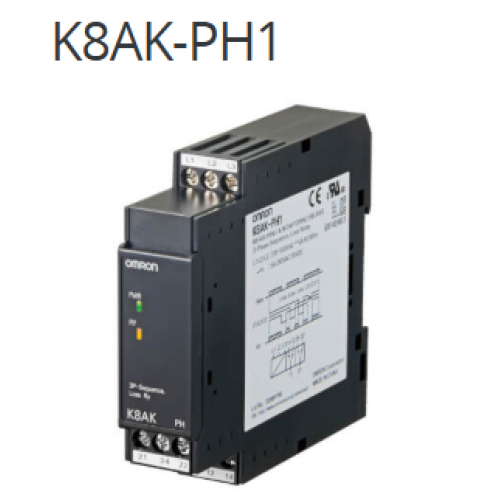

OMRON K8AK-PH1 3 Phase Voltage Monitoring Relay

Description

OMRON K8AK-PH1 3 Phase Voltage Monitoring Relay Best Price in BD

The OMRON K8AK-PH1 3 Phase Voltage Monitoring Relay is a high-precision industrial-grade relay designed to monitor over-voltage, under-voltage, phase loss, and phase sequence in three-phase power systems. Ideal for automation and control panels, it ensures system safety and reduces the risk of equipment failure. With compact DIN rail mounting, LED indicators, and adjustable threshold settings, it offers reliability and convenience in demanding environments. Built with OMRON’s trusted engineering, it delivers long-term durability and performance in both commercial and industrial settings. CityTech BD

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Specification

Manufacturer	OMRON
Type of module	Voltage Monitoring Relay
Controlled parameter	Phase Failure, Phase Sequence
Mounting	For Din Rail Mounting
Manufacturer series	K8AK-PH
Kind of output 1	DPDT
Operating temperature	-20...60°C
Output 1 electrical parameters	24V DC / 5A, 250V AC / 5A
Leads	screw terminals
Contact actuation delay	0.1s
IP rating	IP20
Body dimensions	22.5x90x100mm
Voltage between phases (for three phase system)	3 x 200...480V AC
Controlled parameter range	3x 200V AC...480V AC
