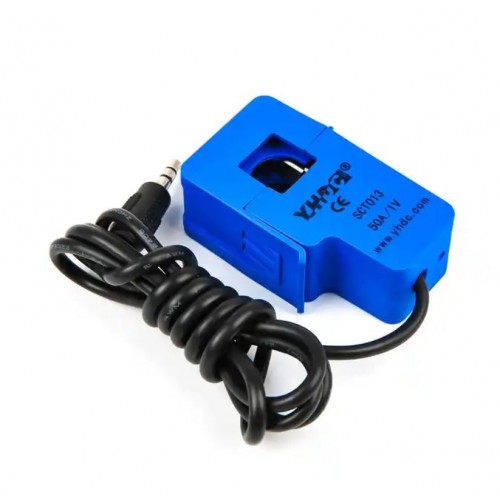

Non-invasive AC current Sensor Split Core Current Transformer SCT-013-050 50A

Description

Non-invasive AC current Sensor Split Core Current Transformer SCT-013-050 50A in Bangladesh

The SCT-013-050 Non-invasive current sensor offers a silicon steel sheet split core structure, hanging installation with leads Length of 1m, used for current measurement, monitor and protection for AC motor, lighting equipment, air compressor, etc. CityTechBD

Applications:
  1. Suitable for the current measuring.
  2. Monitoring and protection of AC motor
  3. Lighting equipment
  4. Air compressor CityTechBD

Features:

  1. Non-invasive current transformer
  2. Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
  3. Meet UL94-V0 flame retardant properties
  4. Two forms of output current, voltage (voltage output built-in the sampling resistor). CityTechBD
General Specification
ModelSCT-013-050
Rated Input (rms) (A)50
Max. Input (A)-
Rated output (V)1
Linearity<0.2%
Accuracy±1%
Work voltage (V)660
Frequency range50Hz – 1KHz
Dielectric strength3.5KV 50Hz 1min
Operating Temperature (°C)-25 ~ 70
Connecting cable length (m)1
Length (mm)57.5
Width (mm)34
Height (mm)21
Weight (gm)64
Shipment Weight0.07 kg
Shipment Dimensions8 × 6.5 × 2.5 cm

Please allow 5% measuring deviation due to manual measurement. CityTechBD

Dimensional diagram:

Package Includes:

1 x Non-invasive AC current Sensor Split Core Current Transformer SCT-013-050 50A. CityTechBD
