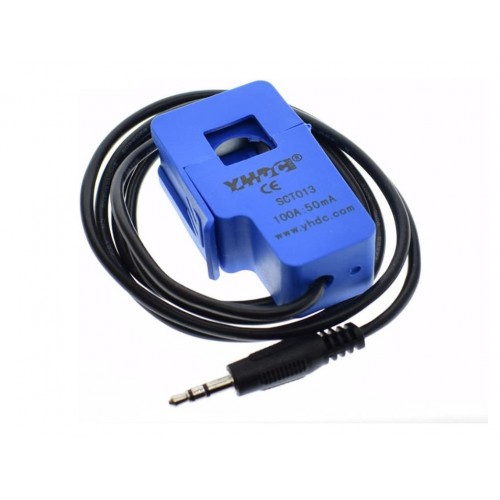

This is SCT 013 000 100A Non-invasive AC Current Sensor Split Core Type Clamp Meter Sensor. SCT-013-000 is a Non-Invasive AC current sensor i.e. it is a current transformer that can be used to measure AC current up to 100 amperes. CityTechBD
Current transformers (CTs) are sensors are for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter). The split-core type such as the SCT-013-000 CT in the picture is particularly suitable for DIY use. Clip this SCT 013 000 straight onto either the live or neutral wire coming into the building without having to do any high voltage electrical work.
Like any other transformer, a current transformer has a primary winding, a magnetic core, and a secondary winding. In the case of whole building monitoring the primary is the life or the neutral wire (not both) coming into the building itself and going through the hole in the CT. The secondary winding comprises many turns of fine wire housed within the casing of the transformer. CityTechBD
Applications
- Suitable for the current measuring.
- Monitoring and protection of AC motor
- Lighting equipment
- Air compressor
Features :
- Non-invasive current transformer
- Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement, and protection
- Meet UL94-V0 flame retardant properties
- Two forms of output current, voltage (voltage output built-in the sampling resistor)
- Non-linearity ±3%(10%-120% rated input current)
- Output Plug 3.5mm
| General Specification |
| Core Material | Ferrite |
| External Material | ABS |
| Input Current | 100A |
| Frequency Range | 50Hz to 150KHz |
| Opening Size(mm) | 13×13 |
| Dielectric Strength(VAC/1min) | 6000 |
| Operating Temperature (°C) | -25 to 85 |
| Cable Length (Meter) | 1 |
| Shipment Weight | 0.04 kg |
| Shipment Dimensions | 9 × 7 × 3.5 cm |
Documentation:
- Interfacing CT Sensor to Arduino
- Arduino Energy Monitor
- Current Monitoring with Non-invasive AC current Transformer
Package Includes :
1 x Non-invasive AC current Sensor Split Core Current Transformer SCT-013-000 100A
