Nema 23 57HS10042A4D8 Stepper Motor

Description

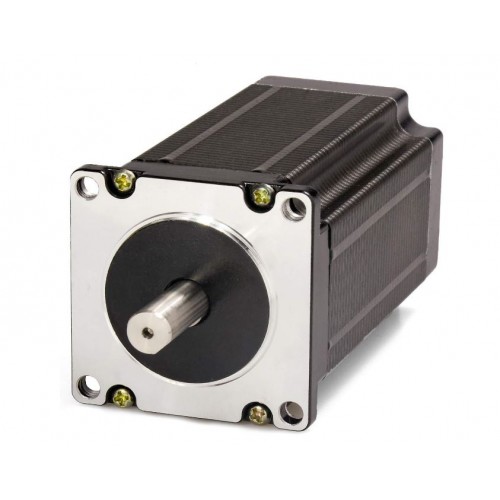

Nema 23 57HS10042A4D8 Stepper Motor in Bangladesh

This is the strongest Nema 23 stepper cnc motors, it with step angle 1.8deg and size 57x57x114mm. It has 4 wires, each phase draws 4.2A, with holding torque 3.0Nm (425oz.in). CityTechBD

Product Images are shown for illustrative purposes only and may differ from the actual product.

Specification of Nema 23 57HS10042A4D8 Stepper Motor:

Manufacturer Part Number: 57HS10042A4D8

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 3.0Nm(425oz.in)
 Rated Current/phase: 4.2A
 Voltage: 3.78V
 Phase Resistance: 0.9ohms
 Inductance: 3.8mH ± 20%(1KHz)
 Physical Specification
 Frame Size: 57 x 57mm
 Body Length: 100mm
 Shaft Diameter: Φ8mm
 Shaft Length: 24mm
 D-cut Length: 20mm
 Number of Leads: 4
 Lead Length: 400mm
 Weight: 1.8kg

A+

A-

B+

B-

Black

Green

Red

Blue

Package Includes:

1 x Nema 23 57HS10042A4D8 Stepper Motor. CityTechBD
