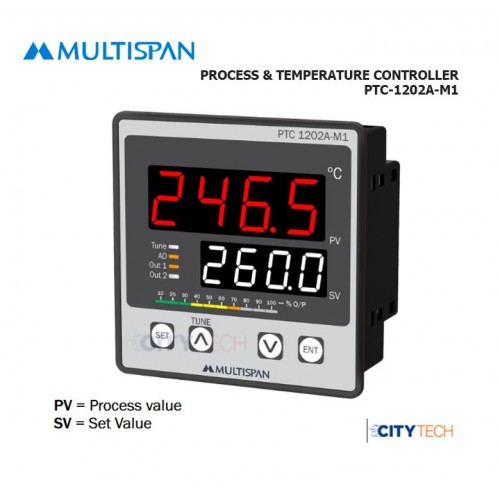

Name: Multispan Temperature Controller PTC-1202A-M1-A2-00A
Brand: MULTISPAN
Price: 12499.00 BDT
Availability: InStock

Multispan Temperature Controller PTC-1202A-M1-A2-00A

Description

Multispan Temperature Controller PTC-1202A-M1-A2-00A Price in BD

The Multispan PTC-1202A-M1-A2-00A is a high-precision temperature controller designed for industrial and commercial applications. It features dual input, multi-range temperature settings, and an intuitive display for easy monitoring. With reliable performance and a robust build, this controller ensures accurate temperature regulation for various processes. Ideal for use in HVAC systems, food processing, and automation industries. Get the best price in BD with guaranteed quality. Featured By CityTech BD

Technical Specifications of Multispan Temperature Controller PTC-1202A-M1-A2-00A:

Specification	Value
Input	J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable)
Output	4-20mA DC + 2 relay
RS-485 Modbus	yes
Auxillary Supply	100-270V AC
Size	96x96x54(HxWxD)mm
Supply Voltage	100 to 270V AC, 50-60Hz
Input J	0 to 600°C
Input K	0 to 1200°C
Input PT-100	-99 to 400°C
Input PT.1	-99.9 to 400.0°C
Input 0-10V DC	-999 to 9999
Input 0-20mA DC	-999 to 9999
Input 4-20mA DC	-999 to 9999
Power Consumption (VA Rating)	Approx 7 VA @ 230V AC MAX
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH Non Condensing
Protection Level	IP-65 (Front side) As per IS/IEC 60529 : 2005
Resolution	J,K,PT-100 = 1°C PT.1 = 0.1°C 0-10V DC,0-20mA DC,4-20mA DC = 0.1,0.01,0.001,0001
Indication Accuracy	±1% of FSD
Display	Upper : 4-Digit,7-Seg 0.8” RED LED Lower : 4-Digit,7-Seg 0.56” Green LED
Keys	SET, INC, DEC, ENT
Panel Cutout (mm)	92 (H) x 92 (W)
Heating	1. PID Control with Auto-Tuning 2. ON-OFF Control
Cooling	1. BL.TP (Blower Time Proportion) 2. ON-OFF Control
Alarm	High/Low/Inband/Outband/ Absolute Low/Absolute Outband
Relay	2 nos.
Relay Type	1 C/O (NO-C-NC)
Rating	5A, 230V AC/30V DC
Analog Output	4 to 20mA DC/0 to 10V DC (Factory Set)
Transmitter supply	24V DC
Modbus Communication	RS-485

Package Includes:

1 x Multispan Temperature Controller PTC-1202A-M1-A2-00A. CityTech BD
