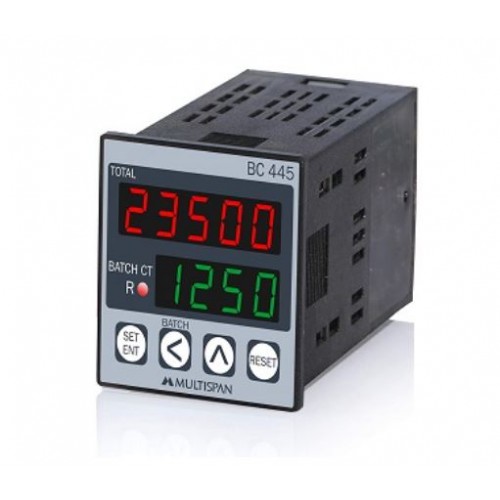

MULTISPAN DIGITAL BATCH COUNTER BC-445

Description

MULTISPAN DIGITAL BATCH COUNTER BC-445 in Bangladesh (BD)

    Features : BC-445

    Proximity or Micro Switch Input

    Single relay + Buzzer Output

    5-Digit Total Count, 4-Digit Batch Count

    Auto/Manual Reset

    Size: (H)45mm x (W)45mm x (W)95mm

    Supply Voltage: 100-270V AC SMPS. CityTech BD

    Specifications :

    ModelBC-445
    DisplayUPPER:- 5 Digit 7 seg 0.3”,red LED Display
    LOWER:- 4 Digit 7 seg 0.3”, green LED Display
    Size (mm)48 (H) X 48 (W) X 95 (D)
    Panel Cutout (mm)45 (H) X 45 (W)
    Output1-Relay, 1-C/O, 230V AC, 5A & Buzzer
    Power Supply100 To 270V AC, 50/60 Hz, Approx 4VA
    SensorProximity PNP/NPN (Selectable) & Micro Switch
    MemoryNonvolatile
    Protection Level (As per request)IP-65 (Front side) As per IS/IEC 60529:2001
    Operating Temperature0°C To 55°C
    Relative HumidityUpto 95% RH Non Condensing
