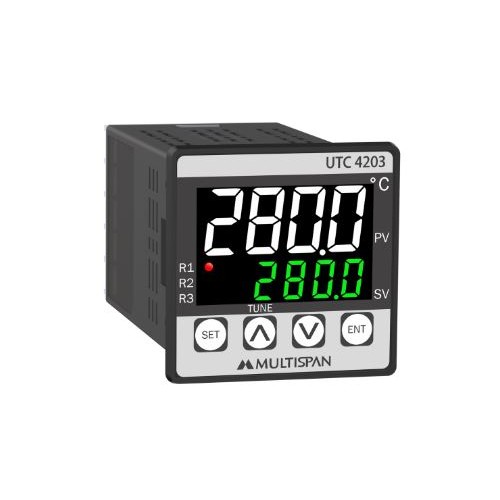

Multispain Temperature Controller UTC-4203 4-Digit Dual Display Three Output PID Controller

Description

Multispain Temperature Controller UTC-4203 4-Digit Dual Display Three Output PID Controller in Bangladesh (BD)

Features : UTC-4203

Universal Input (J/K/RTD)
4-Digit Dual Red/White LED Display
PID/On-Off Controller
Three Output (Relay or SSR) for Load Control & Alarm Functions
With Soak Timer Facility
Size: (H)48mm x (W)48mm x (D)95mm
Supply Voltage: 100-270V AC. CityTech BD

Specifications:

Model	UTC-4203
Display	UPPER:- 4 Digit 7 seg 0.56”, red LED Display
Display	LOWER:- 4 Digit 7 seg 0.33”, green LED Display
Size (mm)	48 (H) X 48 (W) X 95 (D)
Panel Cutout (mm)	45 (H) X 45 (W)
Input	J, K, PT-100 (selectable)
Temperature Range	J: 0 to 600°C / K: 0 to 1200°C /
Temperature Range	PT-100: -99 to 400ºC, PT.1: -99.0 to 400.0°C
Control Action	PID/TP/ ON-OFF (selectable)
Output	3-Relay, 1C/O Contact, 5A,230V AC,
Power Supply	100 to 270V AC,50/60 Hz, Approx 4VA
Protection Level	IP-65 (Front side) As per IS/IEC 60529 : 2001
(As per request)	IP-65 (Front side) As per IS/IEC 60529 : 2001
Operating Temperature	0°C To 55°C
Relative Humidity	Upto 95% RH Non Condensing

Package includes:
1 X Multispain Temperature Controller UTC-4203 4-Digit Dual Display. CityTech BD
