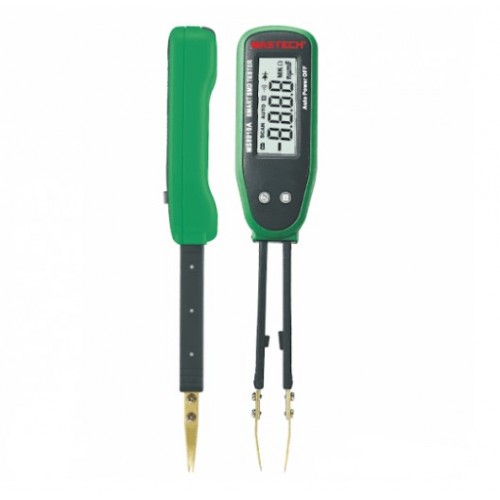

Description: MASTECH MS8910 Smart SMD Tester Automatic Scan Capacitance Resistance Diode Tester Multi Function Continuity Checker
MASTECH MS8910 Smart SMD Tester Automatic Scan Capacitance Resistance Diode Tester Multi Function Continuity Checker Tweezer Type SMD Tester With 2 Pin Test Backups
Though it is in tiny size, this SMD meter tester plays amazing role in measurement. It is mainly used to measure chip resistor, chip capacitor and chip diode devices. Long press the “FUNC” key to turn on / off this tester, it is quite user-friendly. With auto scanning, it could automatically distinguish resistor, capacitor and diode. Moreover, this tester supports low battery indication and over-load indication. For further functions, you should have a try of our MASTECH MS8910 Tweezers Smart SMD RC Resistance Capacitance Diode Meter Tester! CityTech BD
Features:
- Small size and light weight, portable and portable test tool.
- Used to measure SMD, such as IC resistor, Chip capacitor and Chip diode devices.
- Auto scan identifies resistor, capacitor and diode automatically.
- Continuity test. When the resistance is less than 30Ω, it will sound.
- It can also be operated manually. You can press the “FUNC” key to select a certain measurement mode.
- It has the function of waiting for data.
- Long press the “FUNC” to turn this tester on / off.
- Automatic shutdown after it is idle for about 10 minutes. And on this occasion, it can be recovered to use by pressing any key.
- On indication of the load.
- Low battery indication.
- Gold-plated test pins, which can induce its contact resistance and prevent it from rusting.
- Certificate: EMC.
Specifications:
- Display: 3000 count LCD display
- Power supplied by: 1 * 3V CR2032 battery
- Operating temperature: 0 to 40 degrees Celsius
- Operating humidity: <80% RH Storage temperature : -10 to 50 degrees Celsius
- Humidty storage : <70% RH
- Resistance measurement:
- Auto scan range: 300.0Ω to 3,000MΩ
- Manual measurement range: 300.0Ω to 30.00MΩ
- Measurement capacitance:
- Auto scan range: 3,000nF to 300.0μF
- Manual measurement range : 3.000nF to 30.00mF
- Item size: 17.5 * 3.1 * 1.7cm / 6.8 * 1.2 * 0.6in
- Item weight: 46g / 1.6oz CityTech BD
Package Include:
- 1 x MASTECH MS8910 Smart SMD Tester Automatic Scan Capacitance Resistance Diode Tester Multi Function Continuity Checker Tester
