MQ-4 Methane Natural Gas Sensor


If you want to detect methane gases with your projects, you will need sensors. If you need any data on the sensitive material then, the MQ-4 High Sensitivity Gas Methane (CNG) Detector Gas sensor Module is a quite good solution. CityTechBD

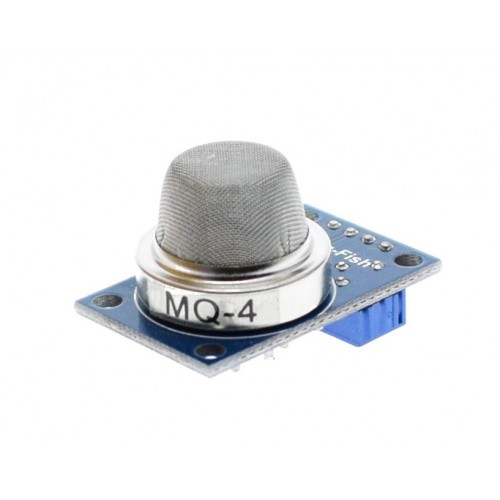

This is a simple to use MQ-4 High Sensitivity Gas Methane (CNG) Detector Sensor Module which can sense the presence of Compressed Natural Gas(CNG), methane(CH4), etc in the air. The module uses our MQ-4 sensor. It simplifies the interface to the odd pin spacing of the sensor and provides the interface through standard 4 x 0.1″ header pins.

It provides an analog output corresponding to the concentration of the gases in the air and an easy-to-use digital output. The onboard potentiometer can be used to set the maximum gas concentration beyond which the digital output gets triggered. The MQ-4 can detect natural gas concentrations anywhere from 200 to 10000ppm.

Just power the module with 5V set the threshold and you can start getting the gas concentration of the air around the sensor! An onboard LED signals the presence of any gas.

The digital output can be easily interfaced with microcontrollers and other circuits. The analog output can be hooked up to an ADC of a microcontroller to get a wide range of sensor readings. This is a simple-to-use compressed natural gas (CNG) sensor, suitable for sensing natural gas (composed of mostly Methane [CH4]) concentrations in the air. CityTechBD

Features :

  1. Signal output indicator
  2. Dual Signals output (analog output and TTL output)
  3. The TTL output signal is low level, allows to connect with SCM directly
  4. Analog output 0~5V voltage
  5. High sensitivity
  6. Long working life and stable performance
  7. Quick response and recovery.

General Specification
IC ChipLM393
Operating Voltage (VDC)3 ~ 5
Detecting Range300ppm to 10000ppm
Length (mm)31
Width (mm)19
Height (mm)21
Weight (gm)6
Shipment Weight0.01 kg
Shipment Dimensions4 × 4 × 3 cm

Package Includes :

1 x MQ-4 High Sensitivity Gas Methane (CNG) Detector Sensor Module
