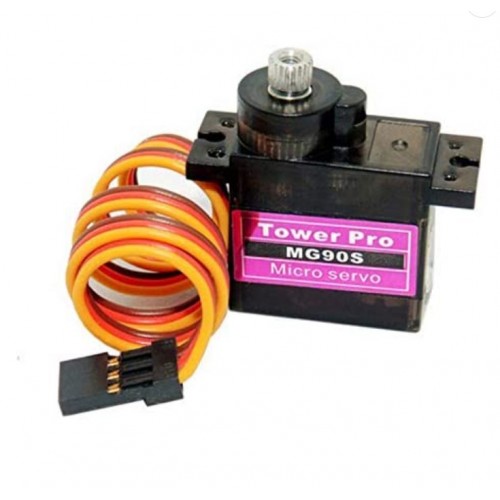

MG90S – MICRO METAL SERVO

Description

MG90S – MICRO METAL SERVO

Features :

  1. High resolution
  2. Accurate positioning
  3. Fast control response
  4. Constant torque throughout the servo travel range
  5. Excellent holding power. CityTech BD
Wire Description

RED – Positive

Brown – Negative

Orange – Signal

General Specification
ModelMG90S
Weight(gm)13
Operating Voltage (VDC)4.8 ~ 6.6
Operating Speed @4.8V0.10sec/60°
Operating Speed @6.6V0.08sec/60°
Stall Torque @ 4.8V (Kg-Cm)1.8
Stall Torque @6.6V (Kg-Cm)2.2
Operating Temperature (°C)0 to 55
Dead Band Width ( μs)1
Rotational Degree180º
Servo PlugJR
Cable Length (cm)25
Length (mm)12.4
Width (mm)22.8
Height (mm)32.5
Shipment Weight0.017 kg
Shipment Dimensions8 × 6 × 3 cm

Package Includes :

1 x Towerpro MG90S Mini Digital 180 Degree Servo

Set of Horns

  1. One Point
  2. Two Point
  3. Four Point

1 x Set of Screws
