Description
If you want to Apply Extra Security for your house then this Magnetic Switch is needed for you. This magnetic switch is used for triggering an alarm or ON/OFF light inside a cupboard sliding door

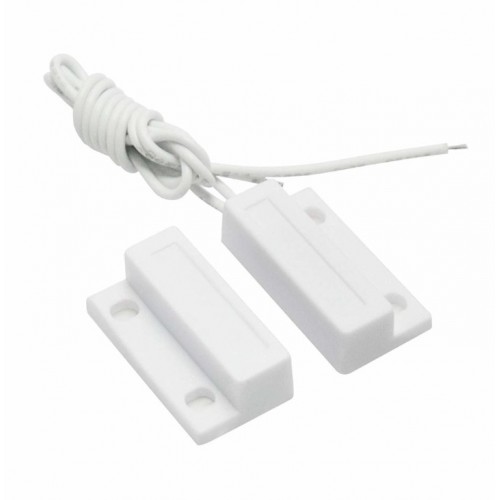

MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System can be used as a door or window security system. It produces the signal when moved away from each other which can be fed to the microcontroller to perform the desired action as per requirement. CityTechBD
This sensor is suitable to use for triggering an alarm or ON/OFF light inside a cupboard sliding door. This wired sensor is triggered by the magnet. When the magnet is closed by, the circuit is closed or open if the magnet is far from the sensor.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Connection Diagram of MC-38 With Arduino:
Features :
- Easy to install
- Strong concealment
- Magnetic sensor alarm, control the switch of the circuit via the built-in magnet
- Alarm when someone intrudes into your places
- Can be used in places like apartments, hotels, offices, etc.
- Ideal for residential or commercial use.
- Designed to do embedded in the door or window frame.
| General Specification | |
| Model | MC38 |
| Material | Plastic |
| Color | White |
| Contact Capacity(Max. Switch Current) | 0.5A |
| Voltage | 100V |
| Rated Power (W) | 10 |
| Actuation Distance (mm) | 15 ~ 25 |
| Connecting cable length (cm) | 30 |
| Length (mm) | 28 |
| Width (mm) | 14 |
| Height (mm) | 8 |
| Weight (gm) | 8 |
| Shipment Weight | 0.012 kg |
| Shipment Dimensions | 4 × 3 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
Package Includes :
1 x MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System.
4 x M5 screws for fitting.
