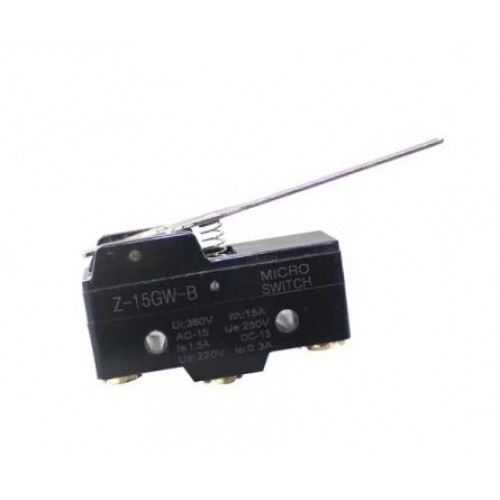

Limit Switch Z-15GW-B Micro Limit Switch

Description

Limit Switch Z-15GW-B Micro Limit Switch in Bangladesh.

Z-15GW-B Micro switch limit switch:

The Z-15GW-B Micro switch limit switch of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches. CityTech BD


A large switching capacity of 15 A with high repeat accuracy.
A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.
A series of standard models for micro loads is available.
A series of molded terminal-type models incorporating safety terminal protective cover is available. CityTech BD

Pls check the datasheet below:

Housing:Nylon 66Lever:Hinge lever
Contact Configuration:SPDTSwitch Operation:OFF – momentary ON
Rating:15A 125V/250VOperating Temperature:-25℃~+80℃
Contact Resistance:≤30mΩElectrical Life:≥ 100,000 Cycles
Insulation Resistance:≥100mΩ (500VDC)Mechanical Life:≥ 1,000,000 Cycles
Degree of protection:IP00OEM or ODM:Available


PACKAGE INCLUDES:

1 x Limit Switch Z-15GW-B Micro Limit Switch. CityTech BD
