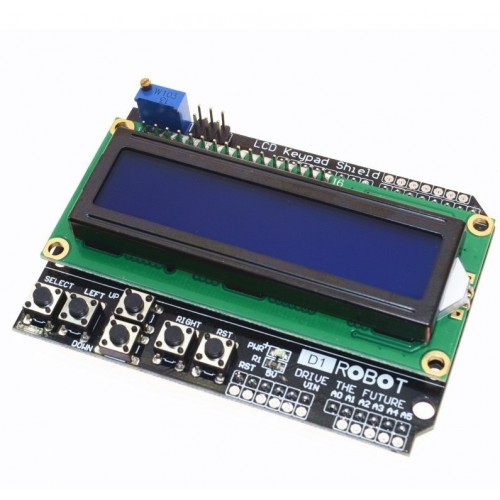

LCD Keypad Shield for Arduino


The 1602 LCD Board Keypad Shield is sometimes called navigation shield because it comes with 6 momentary push buttons for menu navigation. Besides the push button, it also includes a 2×16 LCD.

This is a very popular LCD Keypad shield for Arduino and other variants. It includes a 2×16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD. The onboard LED indicates power on.

Features :

  1. The LCD Keypad shield is developed for Arduino compatible boards, to provide a user-friendly interface that allows users to go through the menu, make selections etc.
  2. It consists of a 1602 white character blue backlight LCD.
  3. The keypad consists of 6 keys select, up, right, down, left and reset.
  4. To save the digital IO pins, the keypad interface only uses one ADC channel.
  5. The key value is read out through a 5 stage voltage divider. CityTech BD

General SpecificationOperating Voltage (VDC)5Push Buttons5Reset ButtonYES (Separate)LCD Model1602Characters16Character ColorWhiteBacklightBlueShield PCB Dimensions (mm)80×58Total Height (mm)26Weight (gm)45Shipment Weight0.05 kgShipment Dimensions6 × 5 × 4 cm CityTech BD

Package Includes :

1 x 1602 LCD Board Keypad Shield
