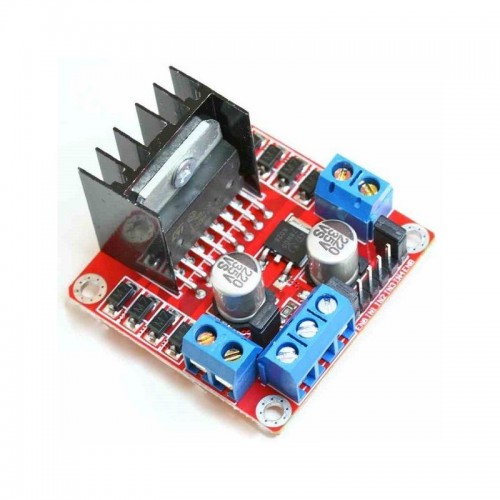

L298N H-Bridge Dual Motor Driver

Description

L298N 2A Based Motor Driver is a high power motor driver perfect for driving DC Motors and Stepper Motors

It uses the popular L298 motor driver IC and has an onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control.

This motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line following robots, robot arms, etc.

Connection Diagram

Connection L298n H bridge

Usage:

H-bridges are typically used in controlling motors speed and direction but can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays.

Pins Details

Out 1: Motor A lead out
Out 2: Motor A lead out
Out 3: Motor B lead out
Out 4: Mo (Can actually be from 5v-35v, just marked as 12v)
GND: Ground
5v: 5v input (unnecessary if your power source is 7v-35v, if the power source is 7v-35v then it can act as a 5v out)
EnA: Enables PWM signal for Motor A (Please see the “Arduino Sketch Considerations” section)
In1: Enable Motor A
In2: Enable Motor A
In3: Enable Motor B
In4: Enable Motor B
EnB: Enables PWM signal for Motor B (Please see the “Arduino Sketch Considerations” section)

Features:

  1. Maximum motor supply current: 2A per motor.
  2. Current Sense for each motor.
  3. Heatsink for better performance.
  4. Power-On LED indicator.
  5. Double H bridge Drive Chip: L298N.
General Specification
Driver ModelL298N 2A
Operating Voltage (VDC)5 ~ 35
Peak Current (A)2
Continuous Current (A)0-36mA
No. of Channels2
Over-Current Protection (A)Yes
Thermal ProtectionYes
LED IndicatorYes
Cooling FanNo
Arduino SheildNo- can be used with Wire connection
Dimensions in mm (LxWxH)44 x 44 x 28
Weight (gm)25
Max power 25W.
Shipment Weight0.03 kg
Shipment Dimensions7 × 7 × 3 cm

Documentation:

  1. Interface L298N DC Motor Driver Module with Arduino (lastminuteengineers)

Package Includes :

1 x L298N H-Bridge Dual Motor Driver, Stepper Motor Driver
