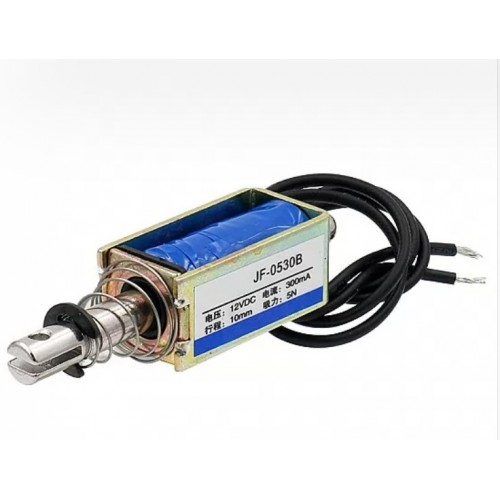

JF-0530B DC 12V 1A 10mm 5N Push Pull Solenoid Electromagnet

Description

DC 12 V 300mA Push Pull Solenoid electromagnet, 10mm 5N Push Pull Type, open frame type, linear motion, plunger spring return, open coil form, DC electron magnet. Used widely in home appliances, vending machines, a game machine, auto door lock. CityTech BD

This DC 12 V 300mA 10mm 5N Push Pull Solenoid Electromagnet can be used for locking sell-machine, storage shelf, file cabinet and etc. The hidden way of unlocking can be used for an emergency. The lock works as the circuits disconnects, and it will unlock as the instant power-on.

It is steady, durable and energy-saving and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the door’s opening and closing. CityTech BD

CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD

Note: Take care of polarity while making the connection without connector (i.e. Red wire should be connected to the positive and Black wire to negative.)

Specification:

  1. Rated Current : 300mA;Action Form : Pull Push Type; Rated Stroke & Force : 10mm, 5N
  2. Body Size : 30 x 15x 15mm/1.2"x 0.59"x 0.59"(L*W*H);Plugger Dia. : 56mm/ 2.2"
  3. Cable Length : 20cm/ 7.9";Material : Metal, Electronic Parts
  4. Weight : 32g;Package Content : 1 x DC Solenoid Electromagnet
  5. Product Name : DC Solenoid Electromagnet; Model : JF-0530B;Rated Voltage : DC 12VHigh quality ultra-compact electric lock. RoboticsBD
General Specification
ModelJF-0630B DC 12 V 5N Push Pull Solenoid Electromagnet
Rated Operating Voltage (VDC)12
Operation ModePush-Pull (Normally Closed)
Rated Current (mA)300
Holding Force (N)6
Energized formsIntermittent
Cable Length (cm)15
Mounting Hole(mm)M2
Shaft Hole Diameter3
Dimensions (mm) LxWxH30 x 14 x 19
Weight(gm)46
Shipment Weight0.07 kg
Shipment Dimensions10 × 5 × 5 cm

Package Includes:

1 x JF-0530B Pull Push Type Electric Solenoid Electromagnet 10mm 5N DC12V
