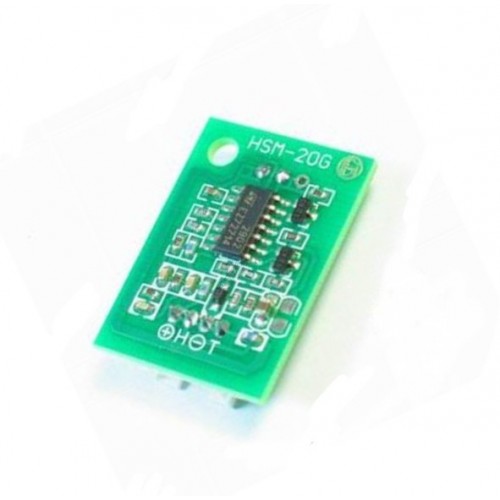

HSM-20G analog temperature & humidity sensor


HSM-20G analog temperature & humidity sensor

Features :

  1. Operating Current (Maximum) 2mA
  2. Storage RH Range 0 to 99% RH
  3. Operating RH Range 20 to 95% (100% RH intermittent)
  4. Transient Condensation < 3%RH
  5. Storage -20℃ to 70℃
  6. Operating 0℃ to 50℃ CityTech BD
General Specification
Input voltage rangeDC 5.0±0.2V
Output voltage rangeDC 1-3.19V
Measurement Accuracy±5% RH
Operating Current (Maximum)2mA
Storage RH Range0 to 99% RH
Operating RH Range20 to 95% (100% RH intermittent)
Transient Condensation< 3%RH
Storage-20℃ to 70℃
Operating0℃ to 50℃
Hysteresis (RH @ 25℃)MAX 2%RH
Long Term Stability(typical drift per year)±1.5%
Linearity :Linearity
Time Response(63% step change) :1 min
Shipment Weight10 gm
Shipment Dimensions3.4x2.2x0.9

Package Includes :

1 x HSM-20G analog temperature & humidity sensor. CityTech BD
