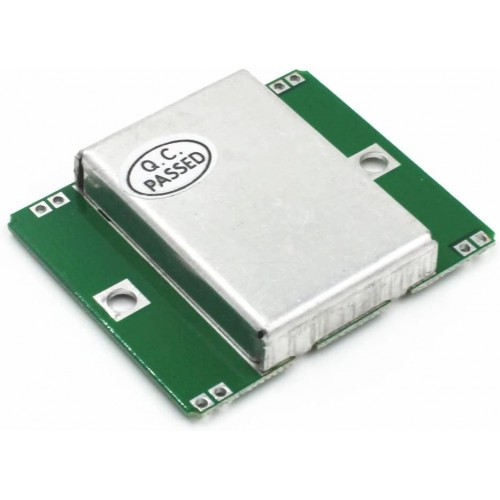

HB100 HB-100 Microwave Motion Sensor 10.525GHz Doppler Radar Detector Module For Arduino Microwave Doppler Radar Wireless Module Motion Sensor

Description

HB100 HB-100 Microwave Motion Sensor 10.525GHz Doppler Radar Detector Module For Arduino Microwave Doppler Radar Wireless Module Motion Sensor in Bangladesh.

HB100 Miniature Microwave Motion Sensor is an X-Band Bi-Static Doppler transceiver module. It has a built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, making it ideal for usage in motion detection equipment. CityTech BD

This module is ideal for alarms, motion detectors, lighting control, vehicle speed measurement, and automatic doors. CityTech BD

Note: Please use a low voltage soldering iron and connect it to a reliable grounding. This device is sensitive to ESD and it may be damaged during soldering. The IF output of the HB100 module is especially sensitive. You can check it for damage using a multimeter in diode mode. The forward voltage drop between IF and GND should be about 0.25 V. CityTech BD

CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD CityTech BD

Features :

  1. Low current consumption (typical 30 mA)
  2. CW or pulse operation
  3. Flat profile
  4. Long detection range (20 m)
General Specification
Input Supply Voltage (VDC)4.75 ~ 5.25
X-Band Frequency(GHz)10.525
Minimum Power Output13 dBm EIRP
PCB Size ( L x W ) mm45 x 38
Height (mm)8
Shipment Weight0.04 kg
Shipment Dimensions6 × 5 × 2 cm

Documentation :

  1. http://pan.baidu.com/share/link? Shareid = 353470203 & UK = 2302102993 (remove space)

Package Includes :

1 x HB100 Microwave Sensor 10.525GHz Doppler Radar Motion Detector Arduino. CityTech BD
