Description

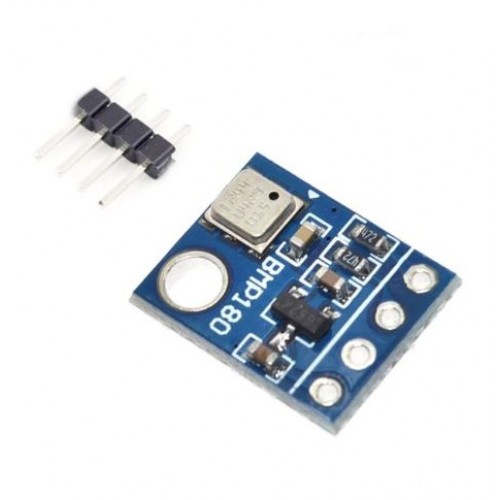

Digital Barometric Pressure Sensor Board GY-68 BMP180

Digital Barometric Pressure Sensor Board GY-68 BMP180 is a digital barometric pressure sensor board that uses the BMP180 sensor to measure pressure and temperature. The sensor can measure pressure in the range of 300 hPa to 1100 hPa (9000m to -500m above sea level) and temperature in the range of -40°C to 85°C. The board can be connected to a microcontroller or single-board computer such as Arduino or Raspberry Pi to read and process the sensor data. It is commonly used for applications such as weather forecasting, altitude measurement, and air pressure sensing in drones and other devices. CityTech BD

Specification;

Pressure measurement range: 300 hPa to 1100 hPa (9000m to -500m above sea level)
Temperature measurement range: -40°C to 85°C
Pressure measurement accuracy: ±1 hPa
Temperature measurement accuracy: ±1°C
Power supply voltage: 3.3V or 5V
I2C communication interface
small size, with a dimension of 15mm x 15mm x 5mm
lightweight, which makes it easy to integrate into portable devices
Low power consumption
Operating altitude up to 9000m
Fully calibrated
Pb, halogen-free
RoHS compliant. CityTech BD

The GY-68 BMP180 digital barometric pressure sensor board can be used in a variety of applications that require accurate measurement of pressure and temperature. Some common uses include:

Weather forecasting: The sensor can be used to measure changes in pressure and temperature, which can be used to predict weather patterns and forecast weather changes.
Altitude measurement: The sensor can measure the air pressure at a specific altitude, which can be used to determine the altitude of an object, such as a drone or airplane.
Barometric pressure sensing in drones: The sensor can be used to measure the air pressure in drones, which can be used to control altitude and stabilize the drone’s flight.
Environmental monitoring: The sensor can be used to measure changes in air pressure and temperature in a specific environment, which can be used for monitoring air quality, temperature, and other environmental parameters.
Automotive and industrial applications: The sensor can be used for monitoring pressure in tires, measuring the pressure in pneumatic systems, and other related applications. CityTech BD

It can be connected to a microcontroller or single-board computer such as Arduino or Raspberry Pi to read and process the sensor data and then it can be used to build a variety of projects and systems.
