Description

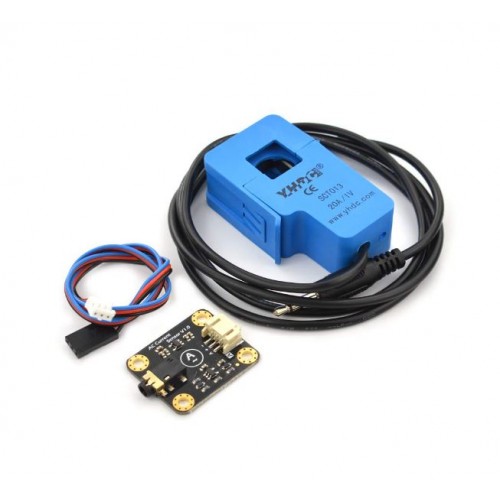

Gravity: Analog AC Current Sensor 20A in Bangladesh
When you want to
measure the AC current, are you still having trouble cutting the wires, wiring,
or soldering. Gravity: Analog AC Current Sensor comes to the rescue, eliminating
the need to cut wires or reconnect circuits. Simply clamp the AC transformer
probe on the AC line, and then plug the 3.5mm headphone jack into the signal
conversion module to read the current AC current value. The analog output is
designed to be compatible with 3V3/5V micro-controller. It can be conveniently
used for AC current measurement to monitor AC motors, lighting equipment, air
compressors, etc. CityTechBD
Features:
1. Non-contact measurement, high safety
2. Multiple ranges for various measurement scenarios
3. Compatible with 3V3/5V micro-controller
Applications:
1. AC motor automatic monitoring
2. Lighting and electrical equipment measurement CityTechBD
General Specification
AC Current Signal Conversion Module
Input Voltage (VCC)
3.3V-5.5V
Interface
Gravity Analog (PH2.0-3P，analog voltage output
0.2-2.8V DC)
AC Voltage Input Range
0-1V (AC RMS)
Relative Error
±4%
Dimension
32×27 mm /1.26×1.06 in
Weight
5g
Open Type AC Transformer Probe
AC Current Range
0-20A
Signal Output (standard Φ3.5mm 3P plug)
0-1V AC voltage, linear corresponding range 0-20A
Accuracy
±1%
Non-linearity
≤±0.2%
Frequency Range
50Hz~1kHz
Cable Length
1m
Working Temperature
-25 ℃~+70 ℃
Opening Size
13×13 mm / 0.51×0.51 in
Weight
50g
Shipment Weight
0.070 kg
Shipment Dimensions
13 ×11 × 4 cm
Documentation:
General Specification
AC Current Signal Conversion Module
Input Voltage (VCC)
3.3V-5.5V
Interface
Gravity Analog (PH2.0-3P，analog voltage output
0.2-2.8V DC)
AC Voltage Input Range
0-1V (AC RMS)
Relative Error
±4%
Dimension
32×27 mm /1.26×1.06 in
Weight
5g
Open Type AC Transformer Probe
AC Current Range
0-20A
Signal Output (standard Φ3.5mm 3P plug)
0-1V AC voltage, linear corresponding range 0-20A
Accuracy
±1%
Non-linearity
≤±0.2%
Frequency Range
50Hz~1kHz
Cable Length
1m
Working Temperature
-25 ℃~+70 ℃
Opening Size
13×13 mm / 0.51×0.51 in
Weight
50g
Shipment Weight
0.070 kg
Shipment Dimensions
13 ×11 × 4 cm
Package Includes:
1 x AC Current Signal Conversion Module
1 x Open Type AC Transformer Probe (20A)
1 x Gravity-3P Analog Sensor Cable CityTechBD
