Description

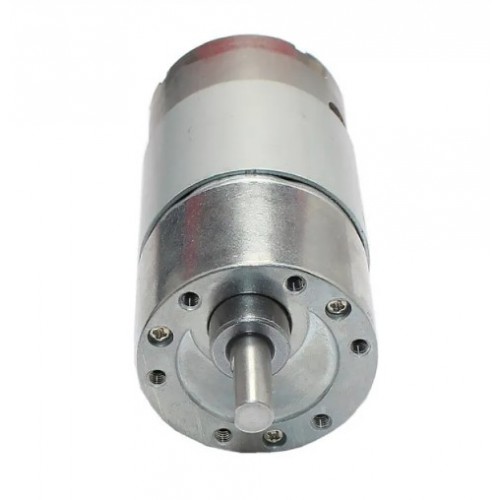

Metal Gear DC 12V 400RPM 37GB Low Speed Large Torque Gear DC Motor

37GB 400RPM Gear Motor Metal 12V Gear Box Motor DC 12V 400RPM Low Speed Large Torque 12V Gear Motor 12V 400RPM Reduction Electric Gear Motor Tools Sets For Robot Car DIY.

37GB 12V DC 400 RPM High Torque Gear-Box Electric Motor 5W Speed control.100% brand new and high quality. It is great for speed control . Replacement your electrical and testing equipment a new lease of life . Benefiting from high torque and low noise. This motor is solidly constructed . This motor suitable for most of high torque applications .

Swap out a poorly running or downright faulty gear box motor for this brand new, high quality 37mm, DC 12V, 400RPM replacement and give your electrical and testing equipment a new lease of life. CityTechBD

Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications.

Specifications:

Product Name: DC Geared Motor
Model Number: 37GB
Rated Voltage: DC 12V
Rated Current: 0.92Amp
Output Speed: 400RPM
Shaft Diameter: 6mm
Gearbox Part Diameter: 37mm
Motor Part Size Length: 85mm
Shaft length: 15 mm
Output Power: 5W
Rated Torque: 12Kg.cm
Commutation: Brush
Protect Feature: Drip-proof
Construction: Permanent Magnet
Certification: ROHS,CE,CCC
Weight: 200gm. CityTechBD

Features:

All the gear of metal mechanism
Wear resistance, strong resistance to torsion, smooth transmission, compact structure.
D-shaped double axis
D-shaped double shaft, excellent thermal conductivity.
The terminal with red dot or “+” is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor.
Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
This product is a straight gear reducer motor, using high precision metal gears, stable operation of the DC motor has greater torque, low speed and low noise.
The motor is made of metal gears. It is wear-resistant, avoids broken teeth and has long service life.
The motor adopts pure copper coil, which has low calorific value and low loss.
Cylinder shape and with 4mm diameter shaft and 2 Terminal connectors.
Great replacement for the rusty or damaged DC geared motor on the machine.
Widely used in electronic locks, robots, electric curtains, electric doors, micro mixers, monitoring equipment, pet feeders, etc. CityTechBD

Application:

Electric lock system, Valve, Vending machine, Pumps, Beauty apparatus, Vending machine, DIY robot toys, Paper shredders, Boat motors, Power tools
For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.
Robotics,
Electric Controlled Valve,
Wending Machine,
Automatic Actuator,
Automatic Doors,
Coin Refund Devices,
Money Detector,
Soft Napkin Machine,
Infusion Pumps etc.

Notes:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement. CityTechBD
