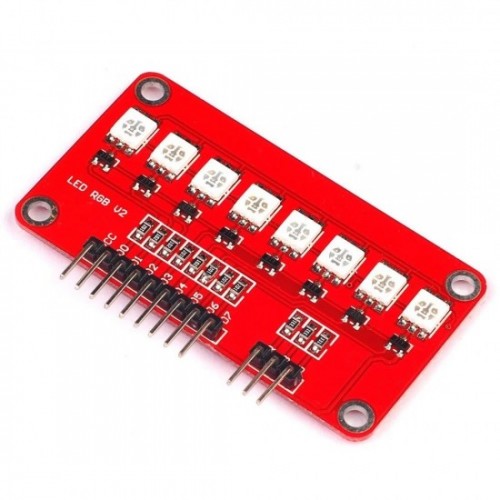

This is Full-Color LED Module / RGB V2 light water for Arduino.
D0-D7 This 8-pin respectively to control 8 LED, so long as the number corresponding with pin connected just fine (as long as we turn this experiment received 2 to 9 pin on OK). Also, next three pin RGB, the need connected with GND, connected with R on the bright red, bright green on connecting with the G, B is connected with the bright blue, while even up on all three lights.
As same as the digital handset control mode, a little selection of control corresponds to LED lighting, the color selection control segment through various procedures can produce a variety of color effect changes. CityTech BD
Connection
- Vcc ↔ Arduino 5v
- D0 – D7 ↔ Connect these to Arduino pins 2 to 9
- R, G, B ↔ Connect these to Arduino pins 10 to 12
Product Images are shown for illustrative purposes only and may differ from the actual product. CityTech BD
Features:
- Full color LED module SCM light water 5050 LED module for Arduino
- Uses high-quality RGB 5050 SMD LED chips for bright and vivid colors
- Waterproof design with silicone sealant for outdoor and indoor use
- Easy to use with Arduino microcontroller boards
- Can be controlled via PWM for brightness and color adjustment
- Compact design for easy installation and integration into various types of electronic systems
Applications:
- This LED module is ideal for use in various types of lighting and display applications, including signs, billboards, art installations, and decorative lighting.
- It can be used to create dynamic and colorful lighting effects, and can be synchronized with music or other external triggers for enhanced visual impact.
- This module is suitable for use in hobbyist and DIY electronics projects, as well as for commercial product development.
| General Specification |
| Length (mm) | 62 |
| Width (mm) | 35 |
| Height (mm) | 8 |
| Shipment Weight | 0.02 kg |
| Shipment Dimensions | 7 × 4 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
Documentation:
- Sample Code
Package Includes:
1 x Full Color LED Module SCM Light Water 5050 LED Module For Arduino
